Brand: Lithonia Lighting


See PRODUCT DESCRIPTION below The EDG may have either been discontinued or may no longer be available.
When you order the EDG, we may substitute with equivalent or better product.

Scroll down to view substitute product(s) below.

Starting at $268.03

Variation Options Filter (291 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: EDG

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$268.03

/ea as Configured

Weight: 5 lbs
SKU: 01:20:EDG
Product Name: EDG EDG

Replacement or Equivalent Products

EL-800S LED (Edgelit-800-SR-AL Red)

EL-800S LED (Edgelit-800-SR-AL Red)

$93.56

DESCRIPTION

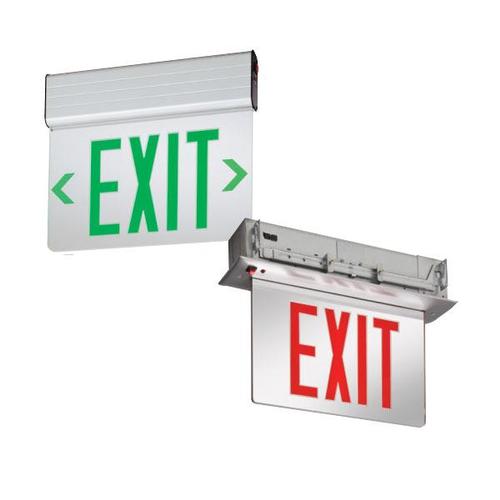

Suitable for applications requiring attractive edge-lit exit signage, universal installation and low energy consumption.

CONSTRUCTION
Extruded brushed aluminum finish. Clear acrylic panels- letters measure 6” high with 3/4” stroke, with 100 ft viewing distance rating, based upon UL 924 standard. For single-face clear panels, EXIT is seen as a reversed image from the back.

OPTICS
LEDs mounted on printed circuit board. The typical life of the exit LED lamp is 10 years. The LED operating frequency is 120Hz.

ELECTRICAL
Dual voltage input capacity (120/277V). Battery: (EL Option) – Sealed, maintenance free nickel-cadmium battery delivers 90 minutes capacity to emergency lamps. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Self-diagnostic testing (EL Option Only) for 30 seconds every 30 days and 90 minutes annually. Diagnostic evaluation of LED light source, AC to DC transfer, charging and battery condition.

INSTALLATION
EDG – Universal surface (top, end or back) mounting. Canopy provided.

EDGR – Recessed mounting. Bar hanger and brackets provided for both new or restricted ceiling access installation applications. Back wall mount (WM) option.

Universal directional indicators. Field selected and attached.

LISTINGS
UL damp location listed 32°-122°F (0°-50°C) standard. Meets UL924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards.

WARRANTY
5-year limited warranty.

VARIATIONS

EDG 1 G EDG 1 G
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDG 1 G 120 X2 EDG 1 G 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 G 277 X2 EDG 1 G 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 G EL EDG 1 G EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
EDG 1 G EL SD EDG 1 G EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 1 G EL SD BAA EDG 1 G EL SD BAA
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDG 1 GMR EDG 1 GMR
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GMR 120 X2 EDG 1 GMR 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GMR 277 X2 EDG 1 GMR 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GMR 277 X2 SD EDG 1 GMR 277 X2 SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: No
EDG 1 GMR EL EDG 1 GMR EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GMR EL SD EDG 1 GMR EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 1 GW EDG 1 GW
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: AC Only
EDG 1 GW 120 X2 EDG 1 GW 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GW 277 X2 EDG 1 GW 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GW EL EDG 1 GW EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 GW EL SD EDG 1 GW EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 1 R EDG 1 R
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 R 120 X2 EDG 1 R 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 R 277 X2 EDG 1 R 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 R BAA EDG 1 R BAA
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDG 1 R EL EDG 1 R EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
EDG 1 R EL SD EDG 1 R EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 1 RMR 120 X2 EDG 1 RMR 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RMR 277 X2 EDG 1 RMR 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RMR EL EDG 1 RMR EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RMR EL SD EDG 1 RMR EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 1 RW EDG 1 RW
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RW 120 X2 EDG 1 RW 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RW 277 X2 EDG 1 RW 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RW EL EDG 1 RW EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 1 RW EL SD EDG 1 RW EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 2 G 120 X2 EDG 2 G 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 G 277 X2 EDG 2 G 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 G EL EDG 2 G EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDG 2 GMR EDG 2 GMR
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GMR 120 X2 EDG 2 GMR 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GMR 277 X2 EDG 2 GMR 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GMR EL EDG 2 GMR EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GMR EL SD EDG 2 GMR EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 2 GW EDG 2 GW
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GW 120 X2 EDG 2 GW 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GW 277 X2 EDG 2 GW 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GW EL EDG 2 GW EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 GW EL SD EDG 2 GW EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 2 R EDG 2 R
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
EDG 2 R 120 X2 EDG 2 R 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 R 277 X2 EDG 2 R 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RMR EDG 2 RMR
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RMR 120 X2 EDG 2 RMR 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RMR 277 X2 EDG 2 RMR 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RMR EL EDG 2 RMR EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RMR EL SD EDG 2 RMR EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 2 RW EDG 2 RW
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RW 120 X2 EDG 2 RW 120 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RW 277 X2 EDG 2 RW 277 X2
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RW EL EDG 2 RW EL
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG 2 RW EL SD EDG 2 RW EL SD
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG 2 RW EL SD WM EDG 2 RW EL SD WM
  • Family: Surface Mount
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDG W 1 G EDG W 1 G
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 G 120 X2 EDG W 1 G 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 G 277 X2 EDG W 1 G 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 G EL EDG W 1 G EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 G EL SD EDG W 1 G EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 1 GMR EDG W 1 GMR
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GMR 120 X2 EDG W 1 GMR 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GMR 120 X2 WM EDG W 1 GMR 120 X2 WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 1 GMR 277 X2 EDG W 1 GMR 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GMR 277 X2 WM EDG W 1 GMR 277 X2 WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 1 GMR EL EDG W 1 GMR EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GMR EL SD EDG W 1 GMR EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 1 GMR EL SD WM EDG W 1 GMR EL SD WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDG W 1 GMR EL WM EDG W 1 GMR EL WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 1 GMR WM EDG W 1 GMR WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 1 GW EDG W 1 GW
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GW 120 X2 EDG W 1 GW 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GW 120 X2 WM EDG W 1 GW 120 X2 WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 1 GW 277 X2 EDG W 1 GW 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GW 277 X2 WM EDG W 1 GW 277 X2 WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Recessed Wall Mount: Yes
EDG W 1 GW EL EDG W 1 GW EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 GW EL SD EDG W 1 GW EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 1 GW EL SD WM EDG W 1 GW EL SD WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDG W 1 R EDG W 1 R
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 R 120 X2 EDG W 1 R 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 R 277 X2 EDG W 1 R 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 R EL EDG W 1 R EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 R EL SD EDG W 1 R EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 1 R EL WM EDG W 1 R EL WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Recessed Wall Mount: Yes
EDG W 1 RMR EDG W 1 RMR
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RMR 120 X2 EDG W 1 RMR 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RMR 277 X2 EDG W 1 RMR 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RMR EL EDG W 1 RMR EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RMR EL SD EDG W 1 RMR EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 1 RW EDG W 1 RW
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RW 120 X2 EDG W 1 RW 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RW 277 X2 EDG W 1 RW 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RW EL EDG W 1 RW EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 1 RW EL SD EDG W 1 RW EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 1 RW EL SD WM EDG W 1 RW EL SD WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDG W 1 RW EL WM EDG W 1 RW EL WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 1 RW WM EDG W 1 RW WM
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDG W 2 GMR EDG W 2 GMR
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 GMR 120 X2 EDG W 2 GMR 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 GMR 277 X2 EDG W 2 GMR 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 GMR EL EDG W 2 GMR EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 GMR EL SD EDG W 2 GMR EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 2 GW EDG W 2 GW
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: AC Only
EDG W 2 GW 120 X2 EDG W 2 GW 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
EDG W 2 GW 277 X2 EDG W 2 GW 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
EDG W 2 GW EL EDG W 2 GW EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
EDG W 2 GW EL SD EDG W 2 GW EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 2 R EDG W 2 R
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
EDG W 2 R 120 X2 SD BAA EDG W 2 R 120 X2 SD BAA
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDG W 2 RMR EDG W 2 RMR
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 RMR 120 X2 EDG W 2 RMR 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 RMR 120 X2 BAA EDG W 2 RMR 120 X2 BAA
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDG W 2 RMR 277 X2 EDG W 2 RMR 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 RMR EL EDG W 2 RMR EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDG W 2 RMR EL SD EDG W 2 RMR EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDG W 2 RW EDG W 2 RW
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: AC Only
EDG W 2 RW 120 X2 EDG W 2 RW 120 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
EDG W 2 RW 277 X2 EDG W 2 RW 277 X2
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
EDG W 2 RW EL EDG W 2 RW EL
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
EDG W 2 RW EL SD EDG W 2 RW EL SD
  • Family: Surface Mount
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 1 G EDGR 1 G
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: AC Only
  • Self-Diagnostics: No
EDGR 1 G 120 X2 EDGR 1 G 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
EDGR 1 G 120 X2 WM EDGR 1 G 120 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
  • Recessed Wall Mount: Yes
EDGR 1 G 277 X2 EDGR 1 G 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
EDGR 1 G 277 X2 WM EDGR 1 G 277 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
  • Recessed Wall Mount: Yes
EDGR 1 G EL EDGR 1 G EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 G EL SD EDGR 1 G EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 1 G EL SD WM EDGR 1 G EL SD WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR 1 G EL WM EDGR 1 G EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Recessed Wall Mount: Yes
EDGR 1 G WM EDGR 1 G WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: AC Only
  • Recessed Wall Mount: Yes
EDGR 1 GMR EDGR 1 GMR
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GMR 120 X2 EDGR 1 GMR 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GMR 120 X2 WM EDGR 1 GMR 120 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Recessed Wall Mount: Yes
EDGR 1 GMR 277 X2 EDGR 1 GMR 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GMR 277 X2 WM EDGR 1 GMR 277 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Recessed Wall Mount: Yes
EDGR 1 GMR EL EDGR 1 GMR EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Recessed Wall Mount: No
EDGR 1 GMR EL SD EDGR 1 GMR EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 1 GMR EL SD WM EDGR 1 GMR EL SD WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR 1 GMR EL WM EDGR 1 GMR EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 GMR EL WM USPOM EDGR 1 GMR EL WM USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: Yes
EDGR 1 GMR WM EDGR 1 GMR WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 GW EDGR 1 GW
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GW 120 X2 EDGR 1 GW 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GW 277 X2 EDGR 1 GW 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GW 277 X2 WM EDGR 1 GW 277 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 GW EL EDGR 1 GW EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 GW EL SD EDGR 1 GW EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 1 GW EL SD WM EDGR 1 GW EL SD WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR 1 GW EL WM EDGR 1 GW EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 GW WM EDGR 1 GW WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 R EDGR 1 R
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
EDGR 1 R 120 X2 EDGR 1 R 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 1 R 120 X2 WM EDGR 1 R 120 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Recessed Wall Mount: Yes
EDGR 1 R 277 X2 EDGR 1 R 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
EDGR 1 R 277 X2 WM EDGR 1 R 277 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Recessed Wall Mount: Yes
EDGR 1 R EL EDGR 1 R EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
EDGR 1 R EL SD EDGR 1 R EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
EDGR 1 R EL SD WM EDGR 1 R EL SD WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR 1 R EL WM EDGR 1 R EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Recessed Wall Mount: Yes
EDGR 1 R EL WM USPOM EDGR 1 R EL WM USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: Yes
EDGR 1 R SD EDGR 1 R SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: Yes
EDGR 1 R USPOM EDGR 1 R USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR 1 R WM EDGR 1 R WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR 1 R WM USPOM EDGR 1 R WM USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: Yes
EDGR 1 RMR EDGR 1 RMR
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 RMR 120 X2 EDGR 1 RMR 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 1 RMR 120 X2 WM EDGR 1 RMR 120 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR 1 RMR 277 X2 EDGR 1 RMR 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 1 RMR 277 X2 WM EDGR 1 RMR 277 X2 WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 RMR EL EDGR 1 RMR EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
EDGR 1 RMR EL SD EDGR 1 RMR EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
EDGR 1 RMR EL SD WM EDGR 1 RMR EL SD WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR 1 RMR EL WM EDGR 1 RMR EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 RMR USPOM EDGR 1 RMR USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR 1 RMR WM EDGR 1 RMR WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR 1 RW EDGR 1 RW
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 RW 120 X2 EDGR 1 RW 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 RW 277 X2 EDGR 1 RW 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 RW EL EDGR 1 RW EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 1 RW EL SD EDGR 1 RW EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 1 RW EL SD WM EDGR 1 RW EL SD WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR 1 RW EL WM EDGR 1 RW EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR 1 RW WM EDGR 1 RW WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR 2 GMR EDGR 2 GMR
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 GMR 120 X2 EDGR 2 GMR 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 GMR 277 X2 EDGR 2 GMR 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 GMR EL EDGR 2 GMR EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 GMR EL SD EDGR 2 GMR EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 2 GW EDGR 2 GW
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 2 GW 120 X2 EDGR 2 GW 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 2 GW 277 X2 EDGR 2 GW 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 2 GW EL EDGR 2 GW EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR 2 GW EL SD EDGR 2 GW EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR 2 R 277 X2 EDGR 2 R 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 R EL EDGR 2 R EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RMR EDGR 2 RMR
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
EDGR 2 RMR 120 X2 EDGR 2 RMR 120 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RMR 277 X2 EDGR 2 RMR 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RMR EL EDGR 2 RMR EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RMR EL SD EDGR 2 RMR EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RMR EL SD USPOM EDGR 2 RMR EL SD USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR 2 RMR EL USPOM EDGR 2 RMR EL USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR 2 RMR USPOM EDGR 2 RMR USPOM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR 2 RW EDGR 2 RW
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RW 277 X2 EDGR 2 RW 277 X2
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RW EL EDGR 2 RW EL
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RW EL SD EDGR 2 RW EL SD
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR 2 RW EL WM EDGR 2 RW EL WM
  • Family: Recessed
  • Housing Color: Brushed Aluminum
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR W 1 G EDGR W 1 G
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 G 120 X2 EDGR W 1 G 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 G 120 X2 WM EDGR W 1 G 120 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 G 277 X2 EDGR W 1 G 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 G 277 X2 WM EDGR W 1 G 277 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 G EL EDGR W 1 G EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 G EL SD EDGR W 1 G EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 1 G EL SD WM EDGR W 1 G EL SD WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR W 1 G EL WM EDGR W 1 G EL WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 G WM EDGR W 1 G WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Clear
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GMR EDGR W 1 GMR
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 GMR 120 X2 EDGR W 1 GMR 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 GMR 120 X2 WM EDGR W 1 GMR 120 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GMR 277 X2 EDGR W 1 GMR 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 GMR 277 X2 WM EDGR W 1 GMR 277 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GMR EL EDGR W 1 GMR EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 GMR EL SD EDGR W 1 GMR EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 1 GMR EL SD WM EDGR W 1 GMR EL SD WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR W 1 GMR EL WM EDGR W 1 GMR EL WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GMR WM EDGR W 1 GMR WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GW EDGR W 1 GW
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 GW 120 X2 WM EDGR W 1 GW 120 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GW 277 X2 EDGR W 1 GW 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 GW 277 X2 WM EDGR W 1 GW 277 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GW EL EDGR W 1 GW EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 1 GW EL SD EDGR W 1 GW EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 1 GW EL SD WM EDGR W 1 GW EL SD WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR W 1 GW EL WM EDGR W 1 GW EL WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 GW WM EDGR W 1 GW WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 R EDGR W 1 R
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Self-Diagnostics: No
EDGR W 1 R 120 X2 EDGR W 1 R 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 R 120 X2 WM EDGR W 1 R 120 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 R 277 X2 EDGR W 1 R 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 R 277 X2 WM EDGR W 1 R 277 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 R EL EDGR W 1 R EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 1 R EL SD EDGR W 1 R EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 1 R EL SD WM EDGR W 1 R EL SD WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR W 1 R EL WM EDGR W 1 R EL WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: Battery Backup
  • Recessed Wall Mount: Yes
EDGR W 1 R WM EDGR W 1 R WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red on Clear
  • Operation: AC Only
  • Recessed Wall Mount: Yes
EDGR W 1 RMR EDGR W 1 RMR
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Recessed Wall Mount: No
EDGR W 1 RMR 120 X2 EDGR W 1 RMR 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Recessed Wall Mount: No
EDGR W 1 RMR 120 X2 WM EDGR W 1 RMR 120 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Recessed Wall Mount: Yes
EDGR W 1 RMR 277 X2 EDGR W 1 RMR 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Recessed Wall Mount: No
EDGR W 1 RMR 277 X2 WM EDGR W 1 RMR 277 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Recessed Wall Mount: Yes
EDGR W 1 RMR EL EDGR W 1 RMR EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Recessed Wall Mount: No
EDGR W 1 RMR EL SD EDGR W 1 RMR EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 1 RMR EL SD WM EDGR W 1 RMR EL SD WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
EDGR W 1 RMR EL WM EDGR W 1 RMR EL WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 RMR WM EDGR W 1 RMR WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 RW EDGR W 1 RW
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 RW 120 X2 EDGR W 1 RW 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 RW 120 X2 WM EDGR W 1 RW 120 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 RW 277 X2 EDGR W 1 RW 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 RW 277 X2 WM EDGR W 1 RW 277 X2 WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
EDGR W 1 RW EL EDGR W 1 RW EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
EDGR W 1 RW EL SD EDGR W 1 RW EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 1 RW EL SD WM EDGR W 1 RW EL SD WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR W 1 RW EL WM EDGR W 1 RW EL WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR W 1 RW WM EDGR W 1 RW WM
  • Family: Recessed
  • Housing Color: White
  • Faces: Single
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: Yes
  • Assembled In America: No
EDGR W 2 GMR EDGR W 2 GMR
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 2 GMR 120 X2 EDGR W 2 GMR 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 2 GMR 277 X2 EDGR W 2 GMR 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 2 GMR EL EDGR W 2 GMR EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 2 GMR EL SD EDGR W 2 GMR EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
EDGR W 2 GW EDGR W 2 GW
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: AC Only
  • Self-Diagnostics: No
EDGR W 2 GW 120 X2 EDGR W 2 GW 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
EDGR W 2 GW 277 X2 EDGR W 2 GW 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
EDGR W 2 GW EL EDGR W 2 GW EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
EDGR W 2 GW EL SD EDGR W 2 GW EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Green On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
EDGR W 2 RMR EDGR W 2 RMR
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
EDGR W 2 RMR 120 X2 EDGR W 2 RMR 120 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 120 AC Inputs
  • Self-Diagnostics: No
EDGR W 2 RMR 277 X2 EDGR W 2 RMR 277 X2
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Dual 277 AC Inputs
  • Self-Diagnostics: No
EDGR W 2 RMR EL EDGR W 2 RMR EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: No
EDGR W 2 RMR EL SD EDGR W 2 RMR EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
EDGR W 2 RMR EL SD USPOM EDGR W 2 RMR EL SD USPOM
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR W 2 RMR USPOM EDGR W 2 RMR USPOM
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On Mirror
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: Yes
EDGR W 2 RW EDGR W 2 RW
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: AC Only
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 2 RW EL EDGR W 2 RW EL
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: No
  • Recessed Wall Mount: No
  • Assembled In America: No
EDGR W 2 RW EL SD EDGR W 2 RW EL SD
  • Family: Recessed
  • Housing Color: White
  • Faces: Double
  • Letter Color: Red On White
  • Operation: Battery Backup
  • Self-Diagnostics: Yes
  • Recessed Wall Mount: No
  • Assembled In America: No
