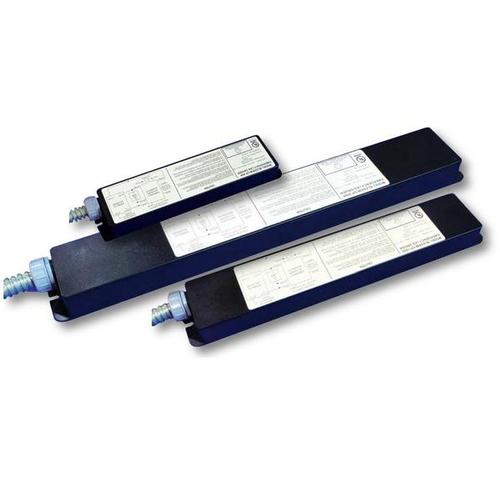

BLEDEM-CP LED Driver

Brand: Bow Lighting

See PRODUCT DESCRIPTION below

Variation Options Filter (12 Model Variations to choose) Use these filters to narrow Product Variations list below.

As configured: BLEDEM-CP

* Model

All (*) form fields are required.

RESET

Select from 12 Model Variations
(Use the filters above to narrow or change this selection.)

View Variations

Order Quantity

/ea as Configured

Weight: 2 lbs
SKU: 01:23:BLEDEM-CP
Product Name: BLEDEM-CP LED Driver

The BLEDEM-CP provides 180-320VDC (equals to 120-230VAC) the load during emergency mode operation

Can be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED LOAD.
Universal 120-277V, 50/60 Hz input.
Charge/Power "ON" LED indicator light and push-to-test switch for mandated code compliance testing.
Long-life, maintenance free, rechargeable NiCad battery.
Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault.
90 Minute minimum emergency operating time over full temperature range.
24 Hour maximum battery recharge time.
Output classification: Class 2 Compliant.
Surge protection: Per C62.41 (TVS).
Input overcurrent protection: Fusible link.
LED illuminated and remote mounted test switch.
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in a black finish.
Provided with 2' flex conduit.

This item can replace: BLEDEM-CP-1200, BLEDEM-CP-800, BLEDEM-CP-1600, BLEDEM-CP-2000, BLEDEM-CP-2400, BLEDEM-CP-2000-CEC
