MOE Moonlite LED Series – Exterior Wall Mount

Brand: Signtex Lighting


See PRODUCT DESCRIPTION below

Starting at $332.39

Variation Options Filter (23 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: MOE

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$332.39

/ea as Configured

Weight: 7 lbs
SKU: 139:MOE
Product Name: MOE Moonlite LED Series – Exterior Wall Mount

DESCRIPTION

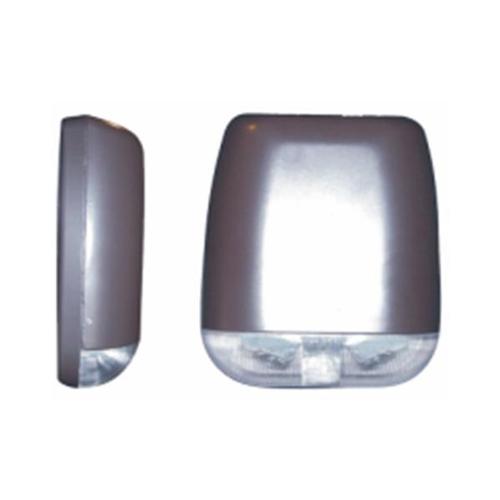

MOE Moonlite LED Series

LED Outdoor Egress Emergency with Night Lighting Option, Remote, Battery backup, or AC operation, 4, 7, or 10 watts, White or bronze

GENERAL DESCRIPTION

MOE with die cast aluminum housing is designed for exterior use in wet locations but is also often used in interiors with potential hard use situations, such as gymnasiums, or hallways in apartment or condominium complexes. Optional night lighting can be controlled by photocell or switched circuit.

CONSTRUCTION

• Extremely compact die cast aluminum housing with molded  polycarbonate lens. Standard finish white or bronze satin  enamel paint; custom colors are available, including brushed  aluminum anodized finishes.
• Universal J- Box mounting pattern.
• Contoured prismatic lens generates a uniform lighting pattern  over required path of egress.
• Three versions available:
 BB= Unit equipment with self-contained battery
 RE= Remote for connection to 24 VDC Central Battery System
 AC= Remote for connection to AC 120/277 emergency supply.

ELECTRONICS

• Lamps are connected in parallel. If one lamp fails, one or more lamps will continue in operation.
• Universal 120/ 277 VAC input for standard battery or AC unit, or 24 VDC input for remote configuration.
• Power supply delivers regulated current and voltage to LED lamps at optimum levels to maximize lamp life.
• Automatic battery diagnostics available for all battery models.

ENERGY EFFICIENT OPERATION

• Emergency lighting with optional dual function  operation for night or security lighting.
• Very low power consumption in night/ security mode. The  security lighting circuit is independent of emergency lighting  and may be switched manually, by an exterior photocell, or  Other automatic means.
• Over 50,000 hour lamp life in normal use.
• IES photometric data available for all models.

CODES

• Manufactured and tested to UL Standard 924 and NFPA  Life Safety Code 101.

WARRANTY

• 5 year total customer satisfaction warranty. For details see product catalog technical data section.

SKUs in this series: MEOBB7W, MOEBB10W, MOERE7W, MOERE10W, MOEAC4W, MOEAC7W


VARIATIONS

MOEAC4B MOEAC4B
  • Operation: AC Only
  • Wattage: 4 Watts (AC Only)
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEAC7B MOEAC7B
  • Operation: AC Only
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEAC7B-DAC 120 MOEAC7B-DAC 120
  • Operation: AC Only
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: Yes 120 VAC
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEAC7B-DAC 277 MOEAC7B-DAC 277
  • Operation: AC Only
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: Yes 277 VAC
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEAC7B-SM MOEAC7B-SM
  • Operation: AC Only
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: Yes
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB10B MOEBB10B
  • Operation: Battery Backup
  • Wattage: 10 Watts (BB & RE Only)
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B MOEBB7B
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-CTF MOEBB7B-CTF
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: Yes
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-DG MOEBB7B-DG
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: Yes
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-DG-LT MOEBB7B-DG-LT
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: Yes
  • High Power in SEC Mode: No
  • Low Temp -40°C: Yes
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-DG-PH MOEBB7B-DG-PH
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: Yes
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : Yes
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-DG-SB120 MOEBB7B-DG-SB120
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: Yes
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: Yes 120 VAC
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-DG-SB277 MOEBB7B-DG-SB277
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: Yes
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: Yes 277 VAC
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-DG-SD MOEBB7B-DG-SD
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: Yes
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: Yes with DG Option
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-SB120 MOEBB7B-SB120
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: Yes 120 VAC
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-SB277 MOEBB7B-SB277
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: Yes 277 VAC
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7B-TD20 MOEBB7B-TD20
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: Yes
MOEBB7K MOEBB7K
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: Black
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOEBB7W MOEBB7W
  • Operation: Battery Backup
  • Wattage: 7 Watts
  • Housing Color: White
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOERE7B MOERE7B
  • Operation: Remote for Central Battery System
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOERE7B-HPS MOERE7B-HPS
  • Operation: Remote for Central Battery System
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: Yes
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOERE7B-SM MOERE7B-SM
  • Operation: Remote for Central Battery System
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: Yes
  • Security Lighting with Control Switch: No
  • Wash Down: No
  • 20 Minute Time Delay: No
MOERE7B-WD MOERE7B-WD
  • Operation: Remote for Central Battery System
  • Wattage: 7 Watts
  • Housing Color: Bronze
  • 90°Cutoff: No
  • Dual AC Input: No
  • Self-Diagnostics: No
  • High Power in SEC Mode: No
  • Low Temp -40°C: No
  • Photocell Lighting Control : No
  • Extended Surface Mount: No
  • Security Lighting with Control Switch: No
  • Wash Down: Yes
  • 20 Minute Time Delay: No
