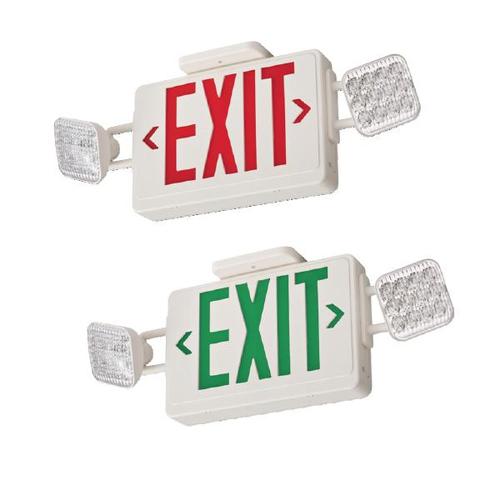

LED Exit/Unit Combo

Combination emergency lighting unit and exit. Suitable for illuminating the path of egress and for marking the means of egress in accordance with Life Safety Code NFPA 101. Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate.



CONSTRUCTION

Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication. Fully assembled single face with extra faceplate for easy field-conversion to double face. Track and swivel arrangement permits full range of lamp adjustment. Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.



OPTICS

The typical life of the LED lamp is 10 years. Two 1W LED lamps for emergency light.



ELECTRICAL

Dual-voltage input 120V or 277V AC; 9.6V output. Emergency combo provided with test switch, status indicator and rechargeable battery. Maintenance-free nickel-cadmium battery provides 90 minutes of emergency power. High output (HO) option provides up to 3W of LED remote capacity.



INSTALLATION

Top, back or end mounting capability (canopy included).



LISTINGS

UL Listed. Meets UL 924, NFPA 101 (current Life Safety Code), NFPA 70-NEC and OSHA illumination standards. Indoor damp location 50°F to 104°F (10°C to 40°C) listed standard.



WARRANTY

5-year limited warranty.
