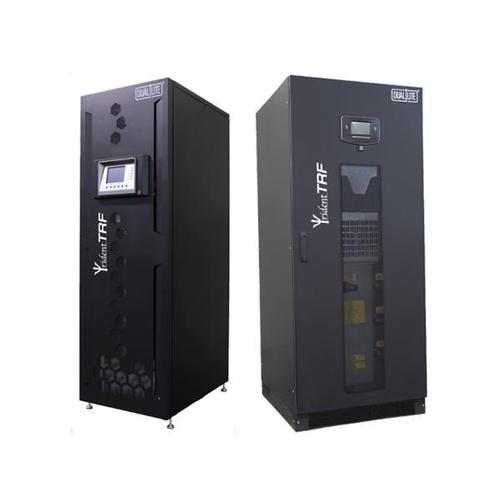

Trident TRF Series Lighting Inverter

Brand: Dual-Lite | Hubbell


See PRODUCT DESCRIPTION below

Starting at $67,140.29

Variation Options Filter (4 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: TRF

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$67,140.29

/ea as Configured

Weight: 42 lbs
SKU: 10:Trident-TRF-Lighting-Inverter
Product Name: Trident TRF Series Lighting Inverter Interruptible Power Supply

DESCRIPTION


Three-phase central lighting inverter system, 10 - 125 KVA
  • Uninterruptible emergency AC power system
  • "No break" design transfers the load instantaneously when normal power is interrupted
  • 90 minute emergency operation supplied standard
  • Three-phase
  • Input/Output Voltage: 208/208VAC, 480/480VAC or 480/208VAC
  • 60 Hz operation (50Hz upon request)
  • Smallest overall system widths in the industry
  • System widths as low as 49"
  • Batteries pre-mounted and wired for lower installation costs
  • Sizes available: 10 through 125 KVA
  • 100% load compatible with any lighting source, including HID
  • Double conversion technology protects against a wide range of input power disturbances
  • Handles deep power line "sags'' without transferring to battery power
  • Facilitates non-linear and non-balanced loads
  • Intuitive graphic user interface includes indicators and audible alarms to provide system status
  • Overload and short-circuit protection
  • Maintenance-free batteries
  • OSHPD seismic approval on greater than or equal to 65KVA, bracing on less than 65KVA
  • Form C contact closure points standard on all models
  • 24 Hour Recharge time
  • All cabinets have casters or leveling feet
  • Manually operated internal maintenance bypass switch included standard
  • 2 year full unit warranty

This item can replace: TridentTRFLightingInverter

VARIATIONS

TRF-480-3-30-208-K TRF-480-3-30-208-K
  • Input Voltage: 480VAC
  • Input Conductor: 3 Wire
  • Capacity: 30KVA/27KW
  • Output Voltage: 208VAC
  • Options: 3-pole Power Distribution
  • Remote Status Panel: No
  • Seismic Mounting: No
TRF-480-3-30-480-K-RSP-SKF TRF-480-3-30-480-K-RSP-SKF
  • Input Voltage: 480VAC
  • Input Conductor: 3 Wire
  • Capacity: 30KVA/27KW
  • Output Voltage: 480VAC
  • Options: 3-pole Power Distribution
  • Remote Status Panel: Yes
  • Seismic Mounting: Yes
TRF-480-4-30-208 TRF-480-4-30-208
  • Input Voltage: 480VAC
  • Input Conductor: 4 Wire
  • Capacity: 30KVA/27KW
  • Output Voltage: 208VAC
  • Options: None
  • Remote Status Panel: No
  • Seismic Mounting: No
TRF-480-4-30-480-SKF TRF-480-4-30-480-SKF
  • Input Voltage: 480VAC
  • Input Conductor: 4 Wire
  • Capacity: 30KVA/27KW
  • Output Voltage: 480VAC
  • Options: None
  • Remote Status Panel: No
  • Seismic Mounting: Yes
