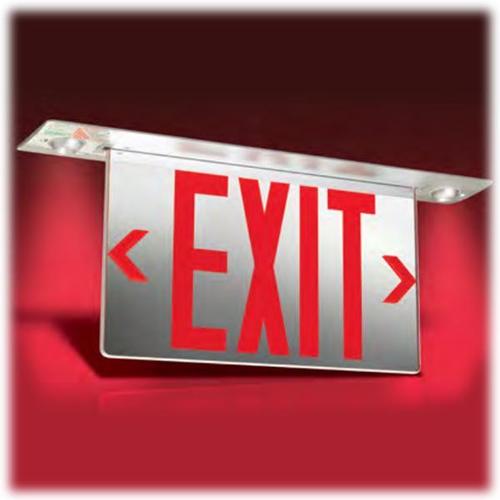

Simplicity™ Universal Combination Edge-Lit Series

Brand: LightAlarms

See PRODUCT DESCRIPTION below

Variation Options Filter (3 Model Variations to choose) Use these filters to narrow Product Variations list below.

As configured: C6UEN

* Letter Color

Heads

Improved Diagnostics

All (*) form fields are required.

RESET

Select from 3 Model Variations
(Use the filters above to narrow or change this selection.)

View Variations

Order Quantity

/ea as Configured

Weight: 8 lbs
SKU: 87:Simplicity-Series
Product Name: Simplicity™ Universal Combination Edge-Lit Series Universal Combination Edge-Lit Series

Construction

Extruded aluminum housing and trim plate

Brushed aluminum finish

Trim plate includes two fully tool-free adjustable, 2.5W LED heads, 400 Lumens each

Acrylic panel featuring 6 inch silk-screened EXIT legend with field selectable chevrons

Single face red or green on clear, double face red or green on mirror

Mounting

Wall and ceiling surface and recessed mount

Universal mounting on wall or ceiling, for surface or recessed applications

Adjustable bar hanger included for recessed applications

Electronics

High temperature long life Nickel Metal Hydride battery provides 90 minutes of emergency operation

120/277VAC 60Hz

Optional: Improved-Diagnostics

Approvals

UL 924 listed

Damp location 41°F to 104°F (5°C to 40°C)

Warranty

(subject to proper installation and maintenance)

Unit has a three-year limited warranty

This item can replace: SimplicitySeries
