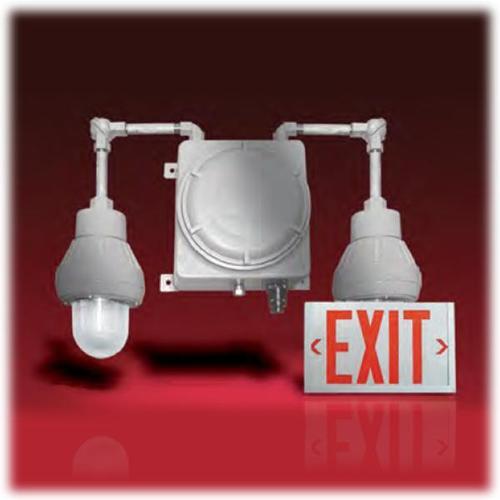

EXP LED Series Hazardous Location Unit

Brand: LightAlarms


See PRODUCT DESCRIPTION below

Starting at $9,177.48

Variation Options Filter (23 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: EXP

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$9,177.48

/ea as Configured

Weight: 10 lbs
SKU: 87:EXP-LED-Series
Product Name: EXP LED Series Hazardous Location Unit Hazardous Location Unit

DESCRIPTION


Housing

  • One-piece heavy gauge, corrosion resistant, copper-free cast aluminum
  • Consists of a housing with provisions for up to two fixtures
  • Spin-off gasketed cover prevents propagation of internally generated arcs
  • Stainless steel vent/drain
  • Lighting fixtures are heavy cast aluminum with Pyrex® lens
  • Exit faceplate: heavy-duty 20 gauge steel, baked enamel grey finish
  • 6 inch EXIT lettering legend, available in red or green
  • Field-selectable chevrons

    • Mounting

  • Surface wall mount
  • 3/4" NPT conduit entry on top and bottom of housing
  • Single and double pendant mount heads include elbow swivel, conduit extension pipe (6" increments)

    • Electronics

  • Pulse plus charger
  • Low voltage disconnect
  • Automatic brownout protection
  • Battery lock-out
  • Fused output circuit
  • 120/277 60Hz Lamp type
  • Heads offer a choice of MR16 LED lamp wattages
  • Exit sign uses a 3 watt LED lamp

    • Battery type

  • 6V or 12V, Nickel-Cadmium battery

    • Warranty (subject to proper installation and maintenance)

  • Unit has a five-year warranty

    This item can replace: EXPLEDSeries

    VARIATIONS

    EXP1224 EXP1224
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-E1LD10 EXP1224-E1LD10
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: Single Head
    • Lamp Wattage: 12 Volt 6 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-E1LD7 EXP1224-E1LD7
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: Single Head
    • Lamp Wattage: 12 Volt 4 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-E1LD9 EXP1224-E1LD9
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: Single Head
    • Lamp Wattage: 12 Volt 5 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-E2LD10 EXP1224-E2LD10
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: Double Head
    • Lamp Wattage: 12 Volt 6 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-E2LD7 EXP1224-E2LD7
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: Double Head
    • Lamp Wattage: 12 Volt 4 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-E2LD9 EXP1224-E2LD9
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: Double Head
    • Lamp Wattage: 12 Volt 5 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP1224-TS EXP1224-TS
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: Transfer Panel
    • Exit Sign: No
    EXP1224-TSX1-LG EXP1224-TSX1-LG
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: Transfer Panel
    • Exit Sign: Green Exit Sign
    EXP1224-TSX1-LR EXP1224-TSX1-LR
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: Transfer Panel
    • Exit Sign: Red Exit Sign
    EXP1224X1-LG EXP1224X1-LG
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: Green Exit Sign
    EXP1224X1-LR EXP1224X1-LR
    • Capacity: 12 Volt 24 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: Red Exit Sign
    EXP1240 EXP1240
    • Capacity: 12 Volt 40 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP618 EXP618
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP618-E1LD1 EXP618-E1LD1
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: Single Head
    • Lamp Wattage: 6 Volt 4 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP618-E1LD2 EXP618-E1LD2
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: Single Head
    • Lamp Wattage: 6 Volt 5 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP618-E2LD1 EXP618-E2LD1
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: Double Head
    • Lamp Wattage: 6 Volt 4 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP618-E2LD2 EXP618-E2LD2
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: Double Head
    • Lamp Wattage: 6 Volt 5 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP618-TS EXP618-TS
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: Transfer Panel
    • Exit Sign: No
    EXP618-TSX1-LR EXP618-TSX1-LR
    • Capacity: 6 Volt 18 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: Transfer Panel
    • Exit Sign: Red Exit Sign
    EXP630 EXP630
    • Capacity: 6 Volt 30 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP630-E2LD1 EXP630-E2LD1
    • Capacity: 6 Volt 30 Watt
    • Number Of Heads: Double Head
    • Lamp Wattage: 6 Volt 4 Watt LED
    • Transformer Panel: No Transfer Panel
    • Exit Sign: No
    EXP630X1-LR EXP630X1-LR
    • Capacity: 6 Volt 30 Watt
    • Number Of Heads: No Heads
    • Lamp Wattage: No Heads
    • Transformer Panel: No Transfer Panel
    • Exit Sign: Red Exit Sign
