OS-NET Series Lighting Sensor

Brand: iR-Tec


See PRODUCT DESCRIPTION below

This product is unavailable or discontinued. Please consider searching products in these related categories:

DESCRIPTION


The ON-LRD-509 series is a standard device of IR-TEC's OS-NET wireless mesh network solution packed with multiple functionalities including occupancy/vacancy sensing, daylight harvesting, bi-level StepDIM or continuous SmartDIM, and wireless network communication for top-notch intelligent lighting control.
The sensor not only controls the connected lighting in the programmed mode independently, but also acts as a network node to broadcast OS-NET commands for group control wirelessly. Each sensor can be assigned to be member of maximum 4 groups for coordinated control. All sensor setting, including sensitivity, burn-in duration, delay time, ambient light level, sensing control mode, grouping/regrouping, can be configured in individual or group basis via a 2-way handheld remote programmer from the floor.

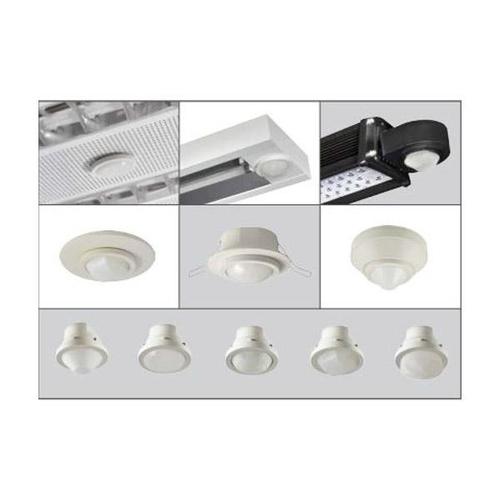

Numerous design innovations allow the sensor to be flexibly integrated with an OEM luminaire, or mounted on the ceiling in a variety of options. Interchangeable lenses allow the sensor to be mounted at various heights with different detection patterns for all applications. With ON-LRD-509, you can effortlessly achieve an energy efficient, code-compliant smart lighting control through a state-of-the-art wireless sensor mesh network established by installing OS-NET enabled lighting.

FEATURES

  • Omni-directional digital quad element sensor
  • Digital data control ambient light sensor built-in
  • Line voltage operation with wireless connectivity
  • 2-way remote programmable sensor/group setup
  • One sensor can be members of multiple groups
  • Hybrid switching technology with 0-10V control
  • SmartDIM or high/low multi-level StepDIM control
  • Exceptionally long remote programming range
  • Flexible fixture integration or ceiling mount options
  • Interchangeable lens options for all applications

This item can replace: ONLRD509S

VARIATIONS

ON-LRD-509SFA ON-LRD-509SFA
  • Mounting Options: Fixture Integrated
  • Lens Options: Standard
