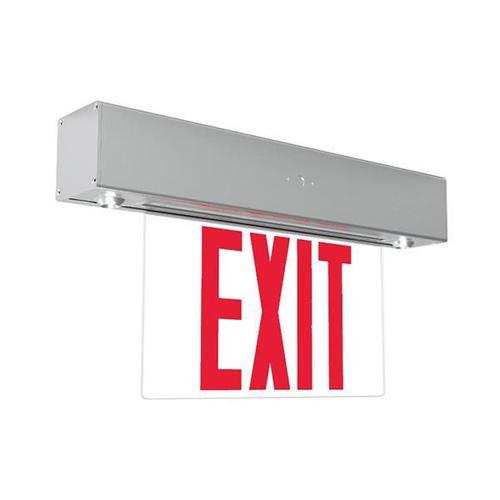

S900C-G3 Series LED Edge-lit Combo Exit Sign

The S900C-G3 Series combines the architectural design of an edge-lit exit sign with fully adjustable recessed emergency LED lamp heads for a modern, low-profile aesthetic. The S900C-G3 Series is designed for easy recessed or surface mount installation in ceilings or walls. Single- and double-face LED exit configurations are included with brushed aluminum, black or white housing finish options. The S900C-G3 Series is ideal for offices, classrooms, corridors, lobbies, and other indoor commercial spaces requiring a minimalist aesthetic for emergency lighting combined with an architectural exit sign.

The GUARDIAN G3 remote monitoring and reporting system from Exitronix simplifies code compliance and significantly reduces operating and maintenance costs by offering automated testing, remote monitoring and reporting of emergency fixture status from a centralized location. For standard fixtures without remote monitoring and reporting, click here.

FEATURES & BENEFITS

• Includes GUARDIAN G3 self-test/self-diagnostics with remote monitoring and reporting
• Designed for simple installation and maintenance in any surface or recessed application, surface mount canopy or recessed mount hardware included
• Universal - includes single-face (clear) and double-face (mirrored) panel configurations
• Optional remote capability up to 3W, compatible with JLED, RL1-WP or RL52 remote lamps remote lamps
• California Energy Commission (CEC) compliant

SPECIFICATIONS

• Illumination: Long-life, high-intensity, red or green LEDs with 2.5W LED lamp heads
• Housing: Steel or aluminum housing with high-grade acrylic panels
• Input: 120/277VAC Dual primary, 60Hz
• Battery: Maintenance-free NiMH battery
• Operating Temp:
• Surface Mount: 10°C to 40°C (50°F to 104°F)
• Recessed Mount: 5°C to 40°C (41°F to 104°F)
• Run Time: UL Listed 90 minute emergency run time, 24 hour recharge time
• Electrical: Low voltage disconnect, overload disconnect, solid state transfer
• Mounting: Surface ceiling, surface wall, recessed ceiling and recessed wall mounting. Includes surface mount canopy or recessed mount hardware
• Legend: Fully illuminated 6” characters with 3/4” stroke and field-selectable directional chevrons
• Finishes: Brushed Aluminum, Black or White
• Options: R - 3W Remote Capable, compatible with JLED, RL1-WP or RL52 remote lamps
• Certifications: UL 924 Listed for Damp Locations, Meets or exceeds NFPA 101 Life Safety Code, NEC, OSHA, and California Energy Commission (CEC) requirements
• Warranty: Any component that fails due to a manufacturing defect is guaranteed for three years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)
