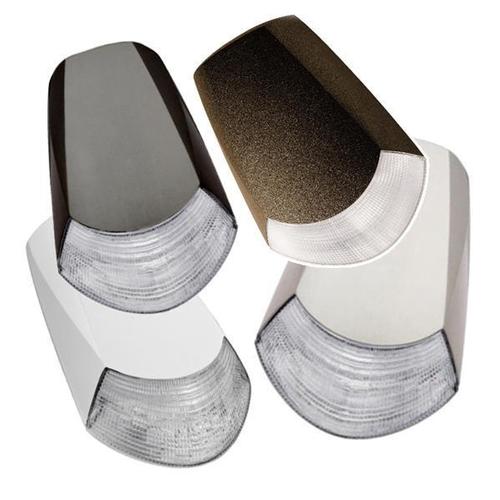

AFN Emergency Light

Brand: Lithonia Lighting


See PRODUCT DESCRIPTION below



The AFN Emergency Light has either been discontinued or may no longer be available.
When you order the AFN Emergency Light, we may substitute with equivalent or better product.

Scroll down to view substitute product(s) below.

Starting at $333.00

Variation Options Filter (12 Available)
RESET

PRODUCT VARIATIONS


(Narrow this list down by choosing filters above)

$333.00

/ea as Configured

Weight: 5 lbs
SKU: 01:20:AFN
Product Name: AFN Emergency Light Lithonia AFN Emergency Light

Replacement or Equivalent Products

DESCRIPTION


The Lithonia AFN has been discontinued and replaced with the AFF product line. Quantities and options for the AFN are very limited

Die-Cast Architectural Emergency Light
Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power. Ideal for applications requiring low-profile, attractive emergency lighting.

CONSTRUCTION
  • Compact, low-profile, architectural design with dark bronze die-cast aluminum housing.
  • All finishes can be painted in the field to match the wall color of choice.
  • U.S. Patent No. D468,046.
OPTICS
  • Standard optics provided with two 6W wedge-base xenon lamps offer 55 percent more light output than standard incandescent lamps. Patent-pending reflector/refractor design features superior vac-metalized, die-casted reflectors; and multi-faceted, highly transmissive refractor that significantly improve photometrics.
  • All light sources meet requirements for NEC 700.16.
  • Dual-voltage input capability (120/277V).
  • Edge connectors on printed circuit board ensure long-term durability.
  • Universal J-box mounting pattern.
  • Low-profile, integrated test switch/pilot light located below the lens.
  • Easily visible green status indicator.
  • Rigid conduit entry provision on top of the unit.
  • Battery: Nickel-cadmium battery with Premium and Exterior option packages.
  • Automatic 48-hour recharge after a 90-minute discharge.
  • Low-voltage disconnect prevents excessively deep discharge that can permanently damage the battery.
  • Single-circuit battery connection.
ELECTRICAL
  • Dual-voltage input capability (120/277V).
  • Current-limiting charger maximizes battery life and minimizes energy consumption. Provides low operating costs.
  • Short-circuit protection — current-limiting charger circuitry protects printed circuit board from shorts.
  • Thermal protection senses circuitry temperature and adjusts charge current to prevent overheating and charger failure.
  • Thermal compensation adjusts charger output to provide optimum charge voltage relative to ambient temperature.
  • Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages. Prevents over/undercharging that shortens battery life and reduces capacity.
  • Filtered charger input minimizes charge voltage ripple and extends battery life.
  • AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.
  • Brownout protection is automatically switched to emergency mode when supply voltage drops below 80 percent of nominal.
  • Self-diagnostics
  • Patented Electronics - U.S. Patent No. D468,046 and 6,502,044.
Single multi-chromatic LED indicator to display two-state charging, test activation and three-state diagnostic status.
Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
Self-diagnostic testing for five minutes every 30 days and 30 minutes every six months.
Diagnostic evaluation of lamp, AC to DC transfer, charging and battery condition. Continuously monitors AC functionality.
Postpone automatic test initiates eight hour delay of an automatic test by activating the manual test switch.

LISTINGS
  • UL Listed.
  • Wet locations and cold temperature listed.
  • Meets UL 924, NFPA 101, NFPA 70-NEC and OSHA illumination standards. UL labeled.

WARRANTY
  • 3-year limited warranty.
Note: Actual performance may differ as a result of end-user environment and application. Specifications subject to change without notice.

VARIATIONS

AFN B Emergency Light
  • Housing Color: Black
  • Options: Standard
AFN B EXT Emergency Light
  • Housing Color: Black
  • Options: Wet Location
AFN B PREM Emergency Light
  • Housing Color: Black
  • Options: Damp Location
AFN BN Emergency Light
  • Housing Color: Brushed Nickel
  • Options: Standard
AFN BN EXT Emergency Light
  • Housing Color: Brushed Nickel
  • Options: Wet Location
AFN BN PREM Emergency Light
  • Housing Color: Brushed Nickel
  • Options: Damp Location
AFN DB Emergency Light
  • Housing Color: Dark Bronze
  • Options: Standard
AFN DB EXT Emergency Light
  • Housing Color: Dark Bronze
  • Options: Wet Location
AFN DB PREM Emergency Light
  • Housing Color: Dark Bronze
  • Options: Damp Location
AFN W Emergency Light
  • Housing Color: White
  • Options: Standard
AFN W EXT emergency light
  • Housing Color: White
  • Options: Wet Location
AFN W PREM Emergency Light
  • Housing Color: White
  • Options: Damp Location

Accessories & Parts

AFN Emergency Light Reviews - Write a Review

DonS - Sep 04, 2020 - Verfied Purchase

Received order in reasonable time frame.  I had one installed on tile wall in a men's restroom.   I was happy that the mounting plate had two sided foam so I didn't have to drill holes in the tile.  The other was mounted in a stairwell  which required mounting screws.  I had an electrician run wire and terminate the connections.  Overall, the installation was uneventful.  It appears these will be easy to test and maintain per NFPA standards.
