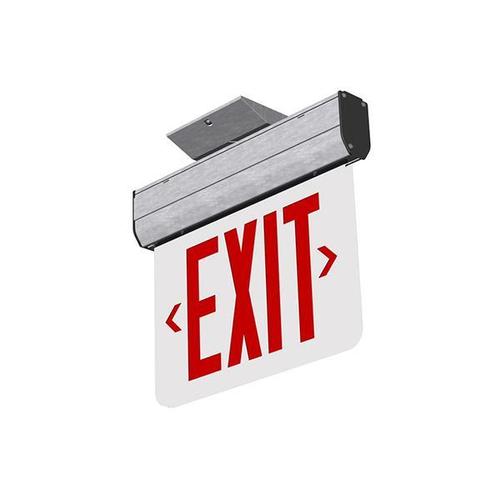

LG-750-REM Series Remote Capable Extruded Aluminum Exit

FEATURES

• Thermoplastic edgelit exit sign
• Thin-profile design with no visible screws or fasteners
• Fast, easy installation; fixture mounts to a standard electrical box
• Universal ceiling or wall mount; end mount kit offered as an option

CONSTRUCTION

• UV-stable, impact-resistant thermoplastic housing; meets UL94V-0 flame rating
• Completely enclosed exit panel prevents the separation that usually happens over time
• Field installed directional chevrons
• EXIT letters are 6” tall with ¾” stroke; 100 ft viewing distance

LAMP

• AlInGaP LEDs with a rated life of 10+ years

ELECTRONICS

• Dual-voltage input capability: 120/277V
• Low-voltage disconnect
• AC indicator light with test switch
• Brownout protection

BATTERY

• EM option comes standard with nickel-cadmium battery
• Provides a minimum of 90 minutes of illumination upon loss of power

COMPLIANCE

• Meets or exceeds UL 924, NFPA 101, NEC and OSHA illumination standards

WARRANTY

• 5-year warranty on housing and electronics. Battery is prorated
