8EMXL-13NYC

DESCRIPTION

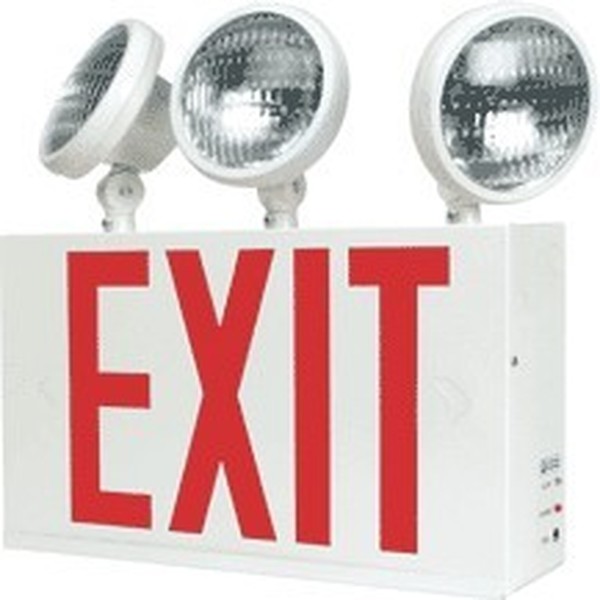

A New-York Style Exit Sign Combination - 8" letters NYC approved.


The 8EMXL series steel combination unit is approved for installation in New York City. Available with high-output red LEDs. The 8EMXL comes standard single face, red LED, with two (3 optional) top mounted Par36 emetgency lighting heads. Housing and stencil are finished in standatd white. Optional black finish is available. Sealed lead calcium battery provides minimum 90 minutes emergency duration. Top mounted emergency lighting heads are fully adjustable and lockable.


The 8EMXL series housing and stencils are constructed from durable 20 gauge steel material. Top mounted Par36 emergency lamp heads are constructed from high-impact thermoplastic and fully adjustable and lockable. The 8EMXL comes standard finish in durable powder coat white. Optional powder coat black is available. External monitor LED and test switch are standard.


120/277 VAC dual voltage input with short circuit and low voltage protaction. Solid-state current limit charger and transfer. Brownout circuit activates emergency operation. Low voltage disconect protects battery agains deep discharge damage.
