DESCRIPTION
RP48
****DISCONTINUED*****

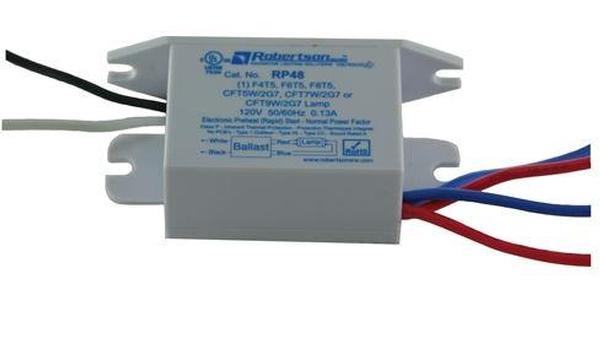

Electronic Ballast
Applications:
1 Lamp
F4T5
F6T5
F8T5
CFTW/2G7
Spec:
120 Volt 50/60hz 0.13A
Electronic Preheat (Rapid) Start - Normal Power Factor
eBallast, Preheat rapid Start, 1 Lamp, T5 (F8T5) or 2 Pin CFL (CFT9W/2G7), NPF, 120 VAC General Characteristics Approvals: UL/935, CSA Certified (cUL) Dimming Method: Non Dimmable Input Power (W): 5-8 Line Voltage (VAC): 120 ±10% Line Current (A): 0.09-0.13 Power Factor: 0.50-0.55 Ballast Factor: 0.93-1.18 Starting Method: Preheat-Rapid Start Input Type: Single Frequency-Hertz: 47-63 Lamp Watts: 4-9 Lamps: (1) F4T5, F6T5, F8T5, CFT5W/2G7, CFT7W/2G7, CFT9W/2G7 Lamp Type: T5 Number of Lamps: 1 Lamp Operation: N/A Product Type: Electronic End of Life: End of Lamp Life Protection Max Case Temp (°C): 75 Series: Performance Series Version: 2 Remote Mounting (ft.): 18 Min. Start Temp (C): -20 Sound Rating: A Standards: ANSI C62.41, ANSI C82.11, FCC PART 18 (Class A) , Class P, Type HL, Type 1 Outdoor, Type CC Product Information Carton Quantity: 50 Skid Quantity: 2250 Energy Star: No RoHS Compliant: Dimension Information Case Color: White Case Material: Plastic Case Style: 2B Case Version: 2 Height (in.): 1.5 Width (in.): 1.06 Length (in.): 3.06 Mounting (in.): 2.75 Weight (lbs.): 0.38
5.00/
