CL150NH75

DESCRIPTION

Application

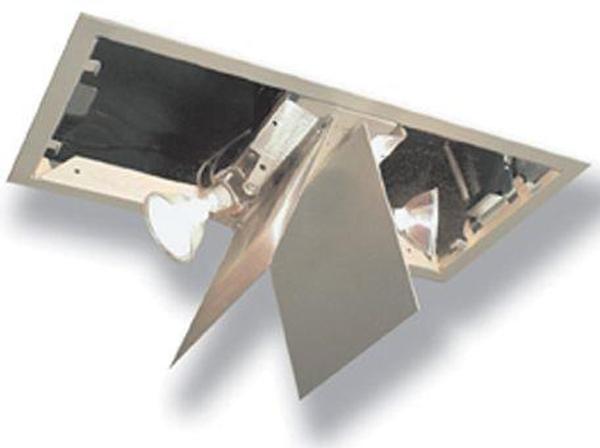

The CL Series is a concealed, recessed, self-contained emergency light with fully automatic operation suitable for wall or ceiling mount applications. With its high wattage lamp offering it offers concealed and unobtrusive emergency lighting compliance for small and large open floor plans. Two flat panel doors are flush with the trim and mounting surface. Upon loss of power, the doors automatically open and reveal the emergency lighting lamp heads.

Features
• Virtually invisible until power outage occurs
• White powder-coated finish; field paintable
• Self-test/self-diagnostic circuitry monitors lamp load transfer, battery capacity, operations and motor drive
• Fully adjustable, high-output halogen lamps
• Brownout detection circuit
• Quiet, reliable, precision-controlled door mechanism
• Low voltage disconnect prevents battery deep discharge
• Choice of lead-calcium or nickel-cadmium maintenance-free batteries
• Polarized connector provides voltage polarity protection
• 15-minute time delay retransfer circuit
• Capacity (50, 100, or 150W)
• Fused remote leads on models with remote capacity
• Universal 120/277VAC oppertion
• Sturdy steel construction
• Adjustable moounting hardware
• Test switch

Options
• Available with 12-75 watt halogen lamps
• Chicago plenum rated
• Less rough-in kit

Temperature Range
• Lead-Calcium Battery: 60°F to 90°F (16°C to 32°C)
• Nickel Cadmium Battery: 32°F to 100°F (0°C to 38°C)

Compliance
• Listed to UL Standard 924 (Emergency Lighting)
• NFPA 101 (Life Safety Code)
• NFPA 70 (National Electrical Code)

Temperature Range
• Lead-Calcium Battery: 60°F to 90°F (16°C to 32°C)
• Nickel Cadmium Battery: 32°F to 100°F (0°C to 38°C)

Accessories
• Remote diagnostic indicator
• Remote testing transmitter
• Pre-installation rough-in kit
• Chicago plenum listed kit
