Prestige X40 Series Discontinued
See Prestige Edge-Lit
For more information, open this spec: PDF

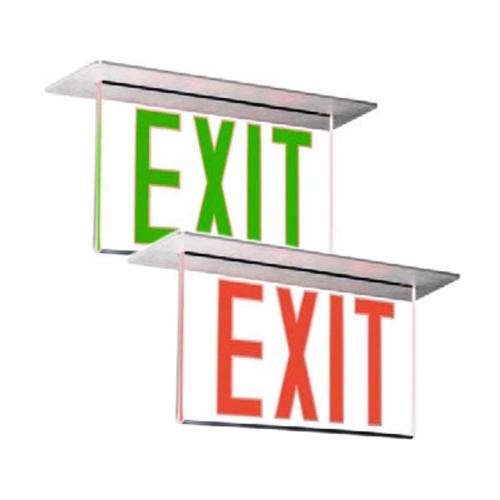

Designed for recessed ceiling mounting applications requiring a flat trim plate.
• Designed to achieve superior visual clarity and performance with an LED light source. Red LED's of ALINGAP technology. High brightness LEDs transmit light directly into both ends of a unique U-shaped panel. LED sensitive inks are formulated to provide a rich color in red or green.
• Virgin acrylic panel provides optimum light transmission. Illumination is 100% in both AC and the emergency mode.
• Clear acrylic panel is silk screened and computer engraved. Computer engraving is used to crisply define each letter and chevron.
• Rugged cast brushed aluminum trim plate
• Low energy consumption LED lamps consume less than 2.3 watts per sign, single or double face, AC-only or self-powered. Long life LEDs eliminate the twice-a-year re-lamping typical of incandescent lamps
• Available with sealed maintenance-free nickel-cadmium batteries
• Fully automatic charger circuitry offers two-wire universal 120 to 277 VAC input, temperature compensated charger, solid state transfer, low voltage battery disconnect, and brownout protection.
• Self-test and silent diagnostic is optional on all self-powered models. It is programmed to ensure the product readiness and reliability by continuously monitoring ever critical function of the unit. The unit is self-tested for one minute every 30 days, 30 minutes every 60 days and 90 minutes annually. When a fault is detected the pilot light will change color from green to red and flash following a particular code, identifying the cause: battery, charger circuitry, or LED lamps.
• Designed to fit integrally with a 20 gauge steel back box. Each unit includes a bar hanger kit.
• UL listed to UL 924 standard
• Prestige LED series signs are unaffected by vibrations, ambient temperature swings and typical power surges detrimental to standard exit light sources
• 5-year full warranty
