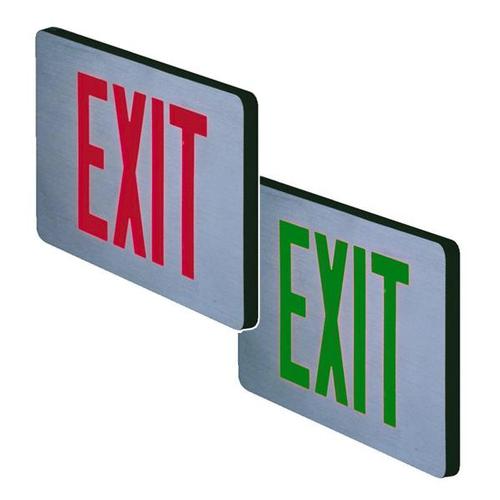

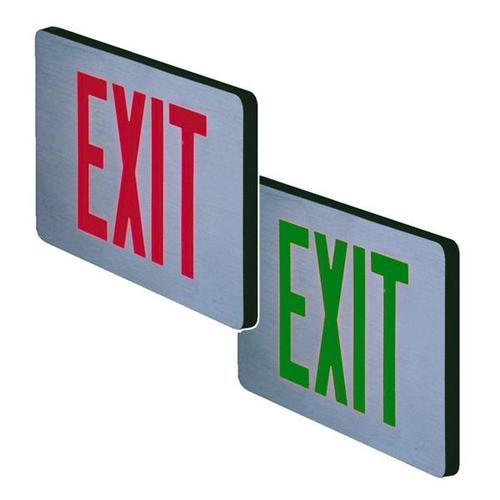

The TPX series is an extremely thin profile die cast Exit for architectural applications. The aluminum housing is available in standard brushed aluminum face with a black housing, all black or all white. Long life, no maintenance red or green LED’s provide a uniform appearance with field configurable chevrons. A long life nickel cadmium battery reduces maintenance and powers the sign for a minimum of 90 minutes.
Dual voltage input 120/277 VAC, 60Hz
Die-cast aluminum faceplate
Overall exposed exit thickness is only 3/4"
20-gauge steel recessed housing fits in 2 x 4 construction
18-gauge steel mounting plate with universal mounting pattern
Adjustable hanger bars
Tamper-resistant screws on sides of faceplate available
