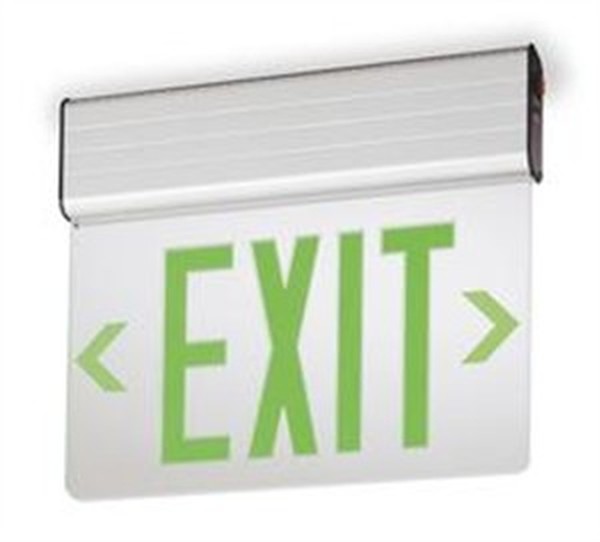

EXF2GWW

Brand: Big Beam | Siltron

See PRODUCT DESCRIPTION below

Quantity:

Need quantities of 15 or more? Call us at (800) 521-4045 for possible reduced pricing.

Weight: 7 lbs
SKU: 01:37:EXF2GWW
Product Name: EXF2GWW EXF2GWW

Dimensions

Height: 10.5"
Width: 12.3 "
Depth: 2.0"

Series Features
	120VAC Operation Standard Maximum Input Rating 120VAC 24 Watts 277VAC 30 Watts
	Long-Life Incandescent (2)140VAC, 15-Watt Lamps
	Ceiling, End or Back Mount Canopy Universal Stencil Directional Chevron Snapouts Downlight 20-Gauge Steel Housing White Powder-Coat Finish UL Listed

Additional Emergency Unit Features
	Integrated Solid State System Multi-Rate, Controlled, Automatic Charger Lock Out (Automatic Battery Connect) Low-Voltage Battery Cutoff Brownout Sensitivity Dual-Voltage Transformer for 120/277 VAC Operation Maximum Input Rating (120 or 277VAC) 26 Watts
	Long-Life Incandescent (2) 6VDC, 6-Watt Lamps
	Sealed Lead Calcium Battery 6-Volt Operation Maintenance-Free
	Test Switch Red (Power On) Indicator

Options Add Suffix to Catalog Number
-6	(2) 6VDC Lamps for AC/6VDC Remote Operation
-12	(2) 12VDC Lamps for AC/12VDC Remote Operation
-277	277VAC Input
-2CKT	(2) Independent AC Circuits
-OF	Open-Face Panel (Fiber Std.)
-REC	Recessed Housing (Single-Face XF Only)
-TP	Tamper-Proof Screws
-U	Universal Face (Additional Backplate – Double-Face Signs Only)

Accessories Order Separately
63	Wire Guard (for Single-Face Back Mount Only)
P12	12" Pendant Kit, White*
P12B	12" Pendant Kit, Black* *Pendant Kits from 12" to 84" Available
VDS	Vandal-Deterrent Shield (for Single- Face Back Mount XF Only)

W**

-6

Series

XF - AC
EXF - Emer.

Faces

1
2

Letter Color

Red
Green
White

Stencil Color

White*
Black
Matte Chrome

Housing Color

White*
Black
Matte Chrome

Options

Factory Options

*Standard
**Background Panel Color on Open-Face Signs
