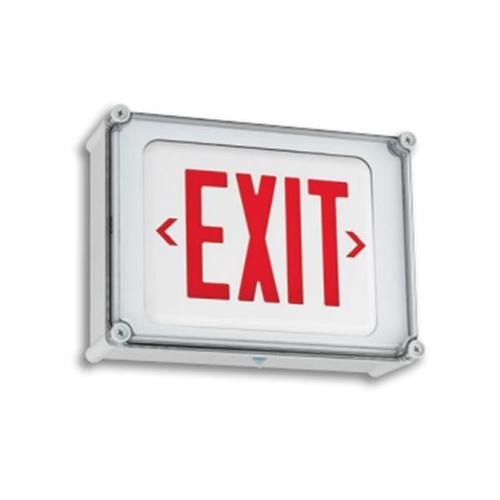

EVE4X Series

DESCRIPTION

The EVE4X is designed for indoor or outdoor wet or dusty environments
requiring corrosion resistant, UL50 type 4X exit signs with energysaving, long-life LEDs. Available in AC only or emergency operation which includes a nickel metal hydride(NiMH) battery and provides a full 90 minutes of emergency exit illumination in the event of power failure. Includes a constant current charger. The EVE accepts 120/277VAC input at 60Hz with a self-diagnostic option.

Construction
The EVE4X Series enclosure and cover is constructed of impactresistant Polycarbonate with light gray color. The cover is secured to the housing by means of four polyamide screws. A polyurethane gasket provides a watertight and dust-tight seal. A white trim plate installs under the housing cover. Directional arrows are snap-in chevron type.

Installation
EVE4X Series exit signs are designed to mount to the wall through four 1/4” integral mounting holes in the unit housing. Mounting hardware is supplied by others. Units must be surface wired for utility power input. Housings are easily drilled or punched to accept sealed conduit hubs (supplied by others).

Illumination
The EVE4X series provides bright and uniform exit panel illumination by using energy saving, long-life red or green LEDs with a 10 year lifecycle. The panel face exceeds UL924 requirements for brightness and uniformity.

Compliance
Listed to UL 924 for Wet Locations
