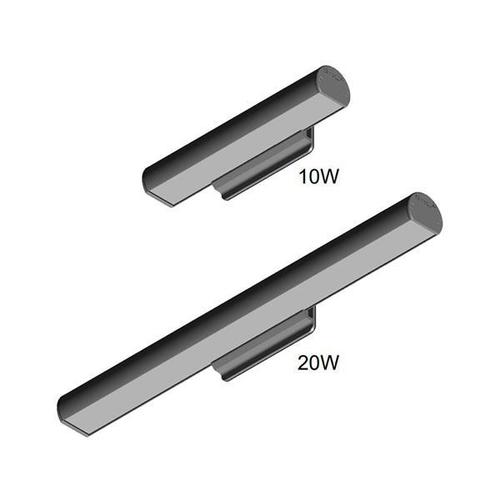

MUE Moonlite LED Series – Mullion Mount

Brand: Signtex Lighting


See PRODUCT DESCRIPTION below


Starting at $390.92

Select Options

PRODUCT OPTIONS

Option Limits:

 1 BB Models Only
2 For Standard BB Operation

Need quantities of 15 or more? Call us at (800) 521-4045 for possible reduced pricing.

$390.92

/ea as Configured

Weight: 15 lbs
SKU: 139:MUE
Product Name: MUE Moonlite LED Series – Mullion Mount


DESCRIPTION


MUE Moonlite LED Series

LED Egress Emergency with Night Lighting Option, Remote, Battery backup, or AC operation, 4, 7, or 10 watts

GENERAL DESCRIPTION

Operating in emergency mode or optional normal-on, this fixture is designed to mount directly on structural mullion beams used in typical glass-fronted entrances, with vertical surface as small as 2”. This fixture has full 90° cut-off and will provide efficient emergency lighting in front of egress doorways, or along extended pathways.

CONSTRUCTION

• Rugged extruded aluminum housing with stainless hardware is corrosion proof.
• Wet location listed UL 924. Certified IP66.
• Uniform, high brightness lighting over the path of egress.
• Full 90° cut- off.
• Three versions are available:
 RE= Central Battery System Series CBS or other qualified source 12V- 24 VDC.
 BB= Battery backup from Remote Battery Supply Series RPS.
 AC= 120/ 277 VAC supply.

ELECTRONICS

• Dual operation from either a battery or optional normally on power source.
• Lamps are connected in parallel-series strings, as required to meet requirements of NEC and Life Safety Codes. Lighting continues even after failure of One lamp or circuit.
• LED color temperature standard 5300K; available color temperatures from 2900K, 3200K, to 3800K.

ENERGY EFFICIENT OPERATION

• Dual function operation for optional normally on night or security lighting as well as emergency lighting.
• Very low power consumption in optional night/security mode. The security lighting circuit is independent of emergency lighting and may be switched manually, by an exterior photocell, or other automatic means.
• Over 50,000 hour lamp life in normal use.
• IES photometric data available for all models.

CODES

• Manufactured and tested to UL Standard 924 and  NFPA Life Safety Code 101.

WARRANTY

• 5 year total customer satisfaction warranty. For  Details see product catalog technical data section.

SKUs in this series: MUERE10WT, MUERE20WT, MUERE10AT, MUERE20AT, MUERE10BT, MUERE20BT, MUERE10WW, MUERE20WW, MUERE10AW, MUERE20AW, MUERE10BW, MUERE20BW, MUEBB10WT, MUEBB10AT, MUEBB10BT, MUEBB10WW, MUEBB10AW, MUEBB10BW, MUEAC10WT, MUEAC20WT, MUEAC10AT, MUEAC20AT, MUEAC10BT, MUEAC20BT, MUEAC10WW, MUEAC20WW, MUEAC10AW, MUEAC20AW, MUEAC10BW, MUEAC20BW
