ILB-CP05 Iota Ballast

Brand: IOTA


See PRODUCT DESCRIPTION below

Starting at $182.54

Variation Options Filter (8 Model Variations to choose) Use these filters to narrow Product Variations list below.
As configured: ILB CP05

All (*) form fields are required.

RESET

PRODUCT VARIATIONS


(Use the filters above to narrow or change this selection.)

$182.54

/ea as Configured

Weight: 1 lb
SKU: 01:17:ILB-CP05
Product Name: ILB-CP05 Iota Ballast

DESCRIPTION

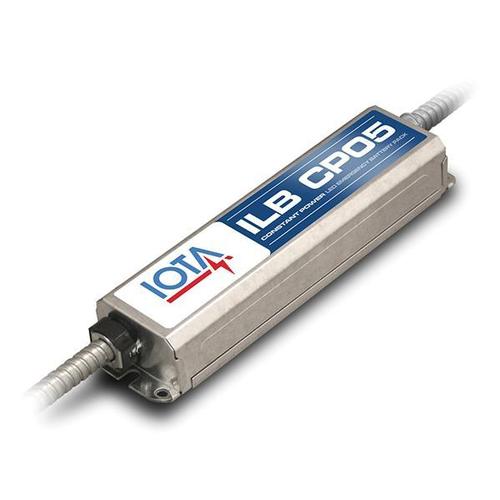

The IOTA ILB CP05 is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP05 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements. The Constant Power design of the ILB CP05 maintains the output wattage to the LED array even as the system voltage diminishes.



Features
  • UL 924 Listed, UL Listed and Classified to FTBV
  • UL 1310 Certified, Class 2 Compliant
  • Six mounting configurations available
  • Long life high temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminares
  • RoHS Compliant

This item can replace: BSL26C,BSL-26C

VARIATIONS

ILB CP05 A ILB CP05 A
  • Title 20 Compliant: No
  • Options: Dual Flex
ILB CP05 B ILB CP05 B
  • Title 20 Compliant: No
  • Options: Integral Non-Flex
ILB CP05 HE A ILB CP05 HE A
  • Title 20 Compliant: Yes
  • Options: Dual Flex
ILB CP05 HE B ILB CP05 HE B
  • Title 20 Compliant: Yes
  • Options: Integral Non-Flex
ILB CP05 J ILB CP05 J
  • Title 20 Compliant: No
  • Options: Single Flex Junction Mount
ILB CP05 R ILB CP05 R
  • Title 20 Compliant: No
  • Options: Dual FLex w/ Reflector
ILB CP05 R-J ILB CP05 R-J
  • Title 20 Compliant: No
  • Options: Junction Mount w/ Reflector
ILB CP05 TM ILB CP05 TM
  • Title 20 Compliant: No
  • Options: Top Mount Non-Flex
