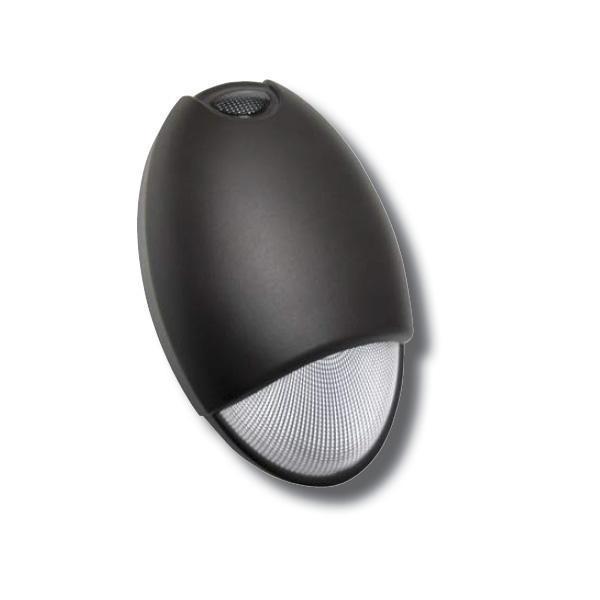

DBEL-ACEM-HL-SDT-PC Wet Location Emergency Light

DESCRIPTION

• Long life, efficient, ultra bright white LED.
• 12W (2 LEDs x 6.0 watt) per unit.
• Mirror-bright reflector and prismatic polycarbonate refractor.
• Can be used as a Normally-ON or Normally-OFF luminaire as well as on a switched circuit.
• Dissipates 1286 lumens in AC mode and 350 lumens in DC mode.

• Universal 120-277VAC voltage.
• Charge rate/power "ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Self-diagnostic test feature continually diagnoses units performance and tests system to ensure reliable operation and to meet electrical and life safety codes (Standard).
• Photocell control sensor included as standard for use as dusk-to-dawn luminaire. (Standard)
• Field-selectable wiring allows for "AC” operation of the unit to be controlled using a wall-switch or a photocell or any other switching mechanism.

• Universal K/O pattern on back plate for wall mount.
• Threaded opening at the top of the enclosure for conduit mount.

• Decorative, Low Profile, architectural design.
• Die-cast aluminum housing.
• Durable powder-coated finishes in white, black, nickel and dark bronze.
• Sealed and gasketed.

• CW: Optional internal heater for extreme cold temperature applications (-20°C – 50°C).
• CEC: Certified to CEC under Title 20 Regulations.
