DESCRIPTION

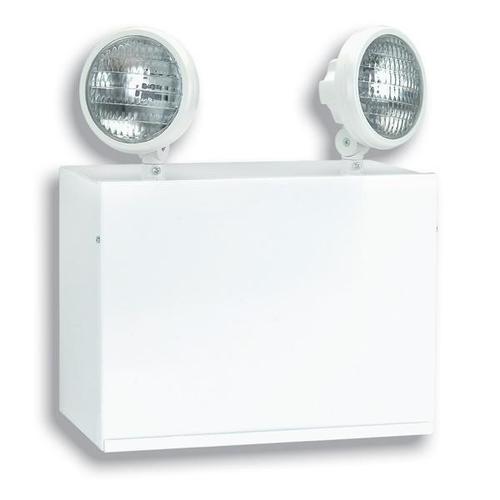

LX Series
EM Unit/Steel/Indoor/Commercial-Industrial
Description
Durable Emergency Light (18W-125W)
Compact and conventional, the LX Series emergency light units are ideal for commercial applications and designed for ease of installation and economy. The rugged steel housing and white baked enamel finish give the LX Series both industrial strength and an attractive appearance. This series is available in several voltages and wattages.
LX Series Benefits and Features
• Completely self-contained
• Sealed maintenance-free lead calcium batteries
• 120/277 volt selectable input
• Low voltage disconnect
• Brownout protection
• 100% Solid state charger
• Solid state relay
• Fully adjustable non-slip, high impact 94V-0, thermoplastic heads
• Dual LED AC pilot and "READY” indicators
• Push-to-test switch
• Labor saving universal mounting
• 20 gauge metal housing with white baked enamel finish
• Remote capability on larger models
VARIATIONS
LX-12-120-2LR-7.2W
- Operation: 12V 120W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-140-2LR-7.2W
- Operation: 12V 140W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-36-2LR-7.2W
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-36-2LR-7.2W-3CP
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: Yes
- Infrared Testing: No
LX-12-36-2LR-7.2W-AM
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: Yes
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-36-2LR-7.2W-B
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: Black
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-36-2LR-7.2W-IRT
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: Yes
LX-12-36-2LR-7.2W-SD
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: Yes
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-36-2LR-7.2W-TD15
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: 15 Minutes
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-36-2LR-7.2W-VM
- Operation: 12V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: Yes
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-42-2LR-7.2W
- Operation: 12V 42W NiCd
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-60-2LR-7.2W
- Operation: 12V 60W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-72-2LR-7.2W
- Operation: 12V 72W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-12-90-2LR-7.2W
- Operation: 12V 90W NiCd
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-100-2LR-7.2W
- Operation: 6V 100W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-120-2LR-7.2W
- Operation: 6V 120W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-36-2LR-7.2W
- Operation: 6V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-36-2LR-9W-AM
- Operation: 6V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 9W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: Yes
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-36-2LR-9W-B
- Operation: 6V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 9W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: Black
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-36-2LR-9W-SD
- Operation: 6V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 9W Incandescent
- Self-Diagnostics: Yes
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-36-2LR-9W-TD15
- Operation: 6V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 9W Incandescent
- Self-Diagnostics: No
- Time Delay: 15 Minutes
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-36-2LR-9W-VM
- Operation: 6V 36W
- Emergency Heads: Double Par 36
- Lamp Type: 9W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: Yes
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-42-2LR-7.2W
- Operation: 6V 42W NiCd
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-60-2LR-7.2W
- Operation: 6V 60W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-72-2LR-7.2W
- Operation: 6V 72W
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
LX-6-90-2LR-7.2W
- Operation: 6V 90W NiCd
- Emergency Heads: Double Par 36
- Lamp Type: 7.2W Incandescent
- Self-Diagnostics: No
- Time Delay: No
- Ammeter: No
- Voltmeter: No
- Housing Color: White
- Cord Set, 120V Only: No
- Infrared Testing: No
