5.00/
DESCRIPTION

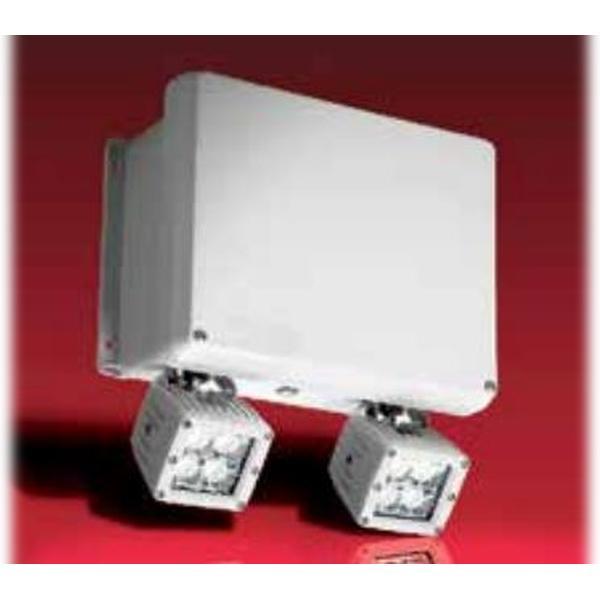

SP12N42L6IDNA
SP Series
NEMA-4X, Severe-performance industrial battery unit for indoor or outdoor applications
Housing
• Compact gray fiberglass housing with captive screws
• NEMA-4X rated
• All external fasteners and hardware are constructed of
stainless steel
• Die-cast aluminum LED heads
Mounting
• Simple and easy to install on walls, poles, columns, struts also
on vertical
• Pole or column installation bracket sold separately (order
catalog number: PMK1-L)
• ½ NPT conduit entry on top or side
Performance
• High temperature Lead-Calcium battery operates 32°F to
122°F (0°C to 50°C) and Nickel-Cadmium battery operates
50°F to 104°F (10°C to 40°C) ; optional cold-weather -40°F to
122°F (-40°C to 50°C)
• 6W, 10W and 15W high efficacy LED emergency heads
outperform traditional 50W MR16-IR Halogen
• Innovative head design: four-LED and dual- driver provide
illumination even in case of unexpected component failure
Electronics
• Infra-red remote control included in all models: allows testing
the equipment without the need to climb a ladder. Distance
range up to 30 ft. Universal, one remote control may test all the
units on the job
• Pulse plus charger
• Low voltage disconnect
• Automatic brownout protection
• Battery lock-out
• Fused output circuit
• Standard Improved Diagnostics (non-audible)
• Optional: Nexus® monitoring system
• 120/277 60Hz
Approvals
• UL 924 Listed
• BC – California Energy Commission Title 20
Warranty (subject to proper installation and maintenance)
Unit: five-year limited warranty
Detailed warranty terms located on page 182 or online at: www.lightalarms.com
