5.00/
SPLEDNWRCD
Brand: LightAlarms
See PRODUCT DESCRIPTION below
This product is a variation of the base model: SLED and SPLED Series Edge-Lit Exit Sign.
Customize your SLED and SPLED Series Edge-Lit Exit Sign
Customize your SLED and SPLED Series Edge-Lit Exit Sign
$362.60
DESCRIPTION
SPLEDNWRCD

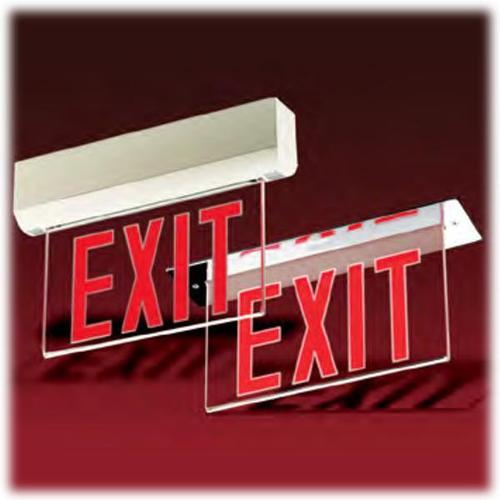

6" EXIT legend, Self-powered, White housing, Red letter, Clear (single face) panel background color, Dome trim plate
Construction
• Universal mount housing models use (D) dome and (P)
pyramid, trim plate, trim ring and canopy made of die-cast
aluminum
• Fully recessed only mount housing with (Z) flat trim plate
includes steel back-box and hanger bars
• U-shaped clear acrylic legend panel features laser-etched
letters and chevrons
• 6 inch EXIT lettering legend, available in red or green
• 8 inch EXIT lettering legend, available in red
• Choice of finishes: white, black or brushed aluminum, dark
bronze, polished brass, polished chrome and painted
Mounting
• (D) Dome and (P) pyramid trim models modular design allows
for surface, wall, end or ceiling mount, as well as, recessed
wall or ceiling applications
• (D) Dome and (P) pyramid trim models include a canopy for
surface wall, end or ceiling mount and for recessed wall or
ceiling applications a trim ring and hanger bars for installation
into t-bar grid
• (D) Dome and (P) pyramid trim models housing is brushed
aluminum with conduit knock-out 1/2", top back and end
• (Z) Flat trim models are for RECESS MOUNTING ONLY and
can not be used for surface mount applications
• (Z) Flat trim models include a unfinished steel back-box and
hanger bars for installation into ceiling and t-bar grid
Special wording panels
Available. Contact your sales representative with your
design requirements
Electronics
• Optional Improved Diagnostics
• Optional Nexus® monitoring system
• 120-277 60Hz
Approvals
• UL 924 listed
• Meets NFPA101 (Life Safety Code), NFPA 70 NEC, OSHA
illumination standards
• ROHS compliant
• E-California Energy Commission Title 20
