REX-SDR

DESCRIPTION

Application

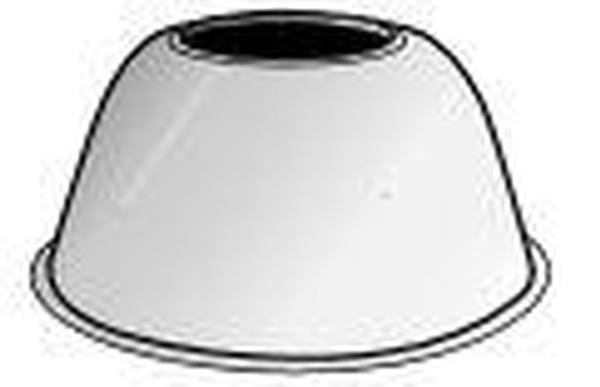

Standard dome reflector. Steel, with white porcelain enamel finish. Mounts to fixture with three "capture" screws. Self-contained explosion proof emergency lighting units. Designed for "normally off" operation of unit-mounded or remote lighting fixtures.

Features
XPB EXPLOSION PROOF EMERGENCY UNIT
• Suitable for use in Class I, Division I and II, Groups C and D environments
• High-strength, copper-free aluminum housing
• Quick access thread-on cover
• Test switch included
• Maintenance-free pure-lead battery
• 6 and 12 volt models
• Remote capacity
• 120/277 VAC operation
• Low-voltage battery disconnect

EXPLOSION PROOF EMERGENCY LUMINAIRES
• Supplied with all fittings required for connection to XPB unit
• Impact resistant, prismatic glass globes, incandescent lamps
• Medium-gray, epoxy-clad, copper-free aluminum housing, 6 or 12 volt models

Options
• XPB explosion proof unit: time delay relay (15-minute retransfer delay, 120VAC only)

Temperature Range
• XPB explosion proof unit: 68°F - 86°F (20°C - 30°C)
• Explosion proof emergency luminaires: T5 (100°C) temperature code for 40°C ambient in C1D1 Groups C, D
• Explosion proof emergency luminaires: T3°C (160°C) temperature code for 40°C ambient in C2D1 Groups E, F, G Class 3

Compliance
• UL Listed to Standard 924 and Standard 844 (Hazardous Location) for NEC C1D1 Groups C, D and C2D1, Groups E, F, G Class 3
• NFPA 101 (Life Safety Code)
• NFPA 70 (National Electrical Code)
