SE Series

SE Series

Brand: Dual-Lite | Hubbell

   5.00/1 Customer Review | Write a Review

SE Series

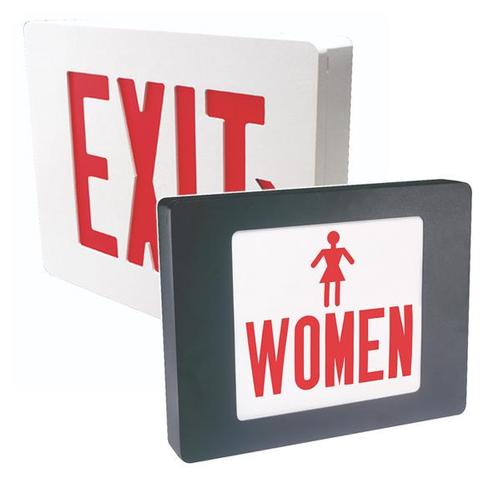

SE Surface Mount Cast Aluminum LED Exit

The SE Series offers bright and even LED illumination in an attractive die-cast aluminum housing. Features include UL listing for 2 hour runtime, AC or Emergency operation with optional Spectron® self-test/self-diagnostic circuitry. Special Wording (SW) option also allows for customization of the stencil field to convey important information. Housing designed for quick and easy installation with low energy consumption. Damp location listed. Includes a Vandal/Tamper Resistant (VTR) option. The VTR option includes a polycarbonate faceshield and tamper resistant screws.
Housing, exit face and matching canopy constructed of high-strength die-cast aluminum. Sign finish is textured white, white with brushed aluminum face, black, or black with brushed aluminum face. Diffuser finish is color-matched silk-screened coating which provides optimized LED light output. Exit face design in single or double face with red or green letters and break-out chevrons. Break-out chevrons are also included with the special worded option. Exit stencil with 6" letters and ¾" stroke.
Universal mounting (wall, ceiling, end) to standard 3½" or 4" octagon or square electrical box by use of easily removed, template configured knockouts. Cast aluminum canopy and universal mounting plate included. All mounting hardware is fully concealed.
Exit face illumination is provided by energy savings, long life red or green LEDs. Exceeds UL 924 requirements for brightness and uniformity. 10 year LED life.
UL 924 Listed (Meets 1998 brightness and uniformity requirements)
UL Damp Location Listed
NFPA 101
U.S. Patents No. 6,050,013 and 6,082,031

Need quantities of 15 or more? Call us at (800) 521-4045 for possible reduced pricing.


Option Limits:
  1. For use with emergency models only.
  2. For use with AC models only.
  3. Operates with 24-volt AC or DC fire alarm panel.
  4. For Emergency illumination of sign from remote 6-24 VDC power source.
  5. DC option may not be specified with 2C or FAP option.
  6. AF, FM, and FAP options may not be specified together.
  7. Meets UL listing requirements for floor proximity use.
  8. For use with self-diagnositic models only.
  9. SERS model only.
  10. See page 3 of the PDF for the sign codes. Enter it in the "comments" field during order check-out.
  11. There is a One time $481.58 Set-Up Charge for Custom Signage


Weight: 6 lbs
SKU: 01:10:SE
