Height: 10.2"
Width: 21.7"
Depth: 4.5"

(With Heads on Top)

Height: 15.7"
Width: 16.3"
Depth: 4.5"

Series Features

• Integrated Solid State System
• Multi-Rate, Controlled, Automatic Charger
• Lock Out (Automatic Battery Connect)
• Low-Voltage Battery Cutoff
• Brownout Sensitivity
• Dual-Voltage Transformer for
  120/277 VAC Operation
• Maximum Input Rating
  120VAC 60 Hz 0.20 Amps
  277VAC 60 Hz 0.20 Amps

• Light-Emitting Diodes – 25+ Year Life
• Illuminates with Uniform Color and Brightness
• Indirect Placement for Diffused Legend Output

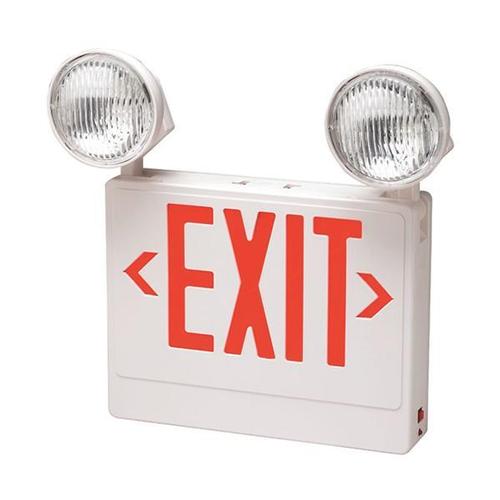

• 2DZF-PAR PAR-36 Type, High-Intensity Tungsten Lamps, 6-Watt
• 2DZF-MR MR-16 Type, Halogen Lamps, 5-Watt

• Sealed Lead Calcium Battery
• 6-Volt Operation
• Maintenance-Free

• Injection-Molded Thermoplastic Housing
• Snap-Together Design for Fast Installation
• Off-White Finish
• Fully Adjustable Lighting Heads
• Single- or Double-Face Configuration
• Replaceable Knock-Out Directional Chevrons
• Canopy for Surface, End or Ceiling Mount
• LED Charge Rate Indicator
• Damp Location
• Test Switch
• UL Listed

Unit Information

Model
Number


Std.
Lamp
Watt

Watts per Hour

Replacement
Battery

DZF-MR

5

(1) S65
