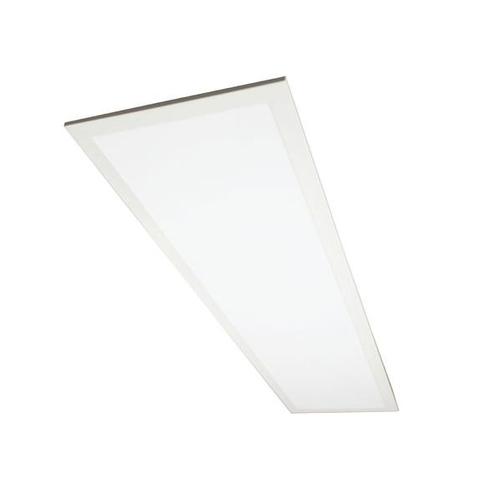

Ultra-thin, edge-lit LED panel (LEDPNL) series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.
Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
Long-life LEDs provide 56,000 hours of operation with at least 70% of initial lumen output (L70).**
Provides 4,070 luminaire lumens (102 lumens per watt, LPW) at 3000k, 4,149 luminaire lumens (104 LPW) at 4000k, and 4,600 luminaire lumens (115 LPW) at 5000k.*
Uniform illumination with no visible LED pixilation.
Universal 120-277 AC voltage (50-60Hz) is standard.
0-10vdc dimming capability is standard.
Power factor > 0.90.
Total harmonic distortion < 20%.
Color rendering index > 80.
PMMA (polymethyl methacrylate) acrylic lens with light guide panels for optimal light distribution and efficiency.
Suitable for ambient temperatures from -25°C to 45°C (-13°F to 113°F).
Easy installation in new construction or retrofit.
Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting requires a surface mounting kit (option SMK).
** L70 hours are IES TM-21-11 calculated hours.
Need quantities of 15 or more? Call us at (800) 521-4045 for possible reduced pricing.
