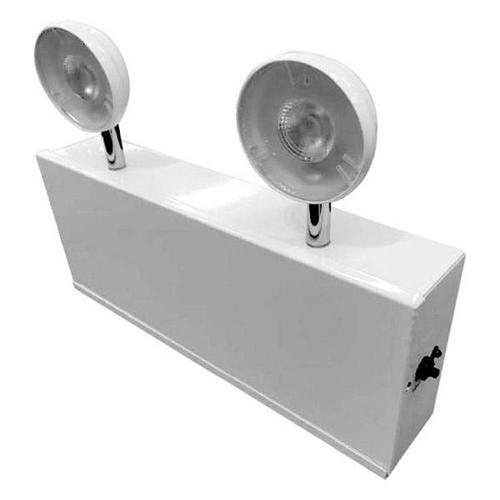

CCU2 Steel LED Emergency Light

The CCU2 Series offers emergency lighting for commercial applications. The housing is made of durable 20-gauge steel providing strength and durability. AC power on LED indicator with push-to-test switch. Meets City of Chicago code requirements.

Electronics
100% solid state switching includes low voltage disconnect to prevent full battery discharge and AC lock-out feature. Emergency model includes maintenance-free sealed lead acid battery with capacity to run the LED’s for 90 minutes. 24 hour battery re-charge. All models supplied with a dual voltage input which accepts 120 or 277VAC. Includes pre-stripped AC pigtail leads. Includes test switch and AC-on indicator.
Battery Type: Sealed Lead Acid
Input: Dual 120/277 voltage
Operating Temperature Range : 20°C to 50°C
Weight: CCU2: 6.7

Construction
The housing is made of heavy-duty 20 gauge steel in white finish. The two 5.3W Lamp heads in white finish are adjustable.

Installation
Knockouts are located on the back for wall mounting. Side and top knockouts for conduit feed applications.

Illumination
Two 6V, 5.3W Lamp heads standard. Remote capacity option for 20W models. Will run two LED CRH heads ordered separately.

Compliances
Listed to UL924 Standard
City of Chicago Fire Code Approved
Damp Location Listed (20°C to 50°C)
NFPA 101
NEC
OSHA

Warranty
Full 5 year warranty



SKUs in this series: CCU2, CCU2RC
