Brand: Mule Lighting

This product is a variation of the base model: NEMA 12 JC Series.
Customize your NEMA 12 JC Series



/ea as Configured or choose a product variation below

Weight: 8 lbs
SKU: 01:21:JC-6-100-2

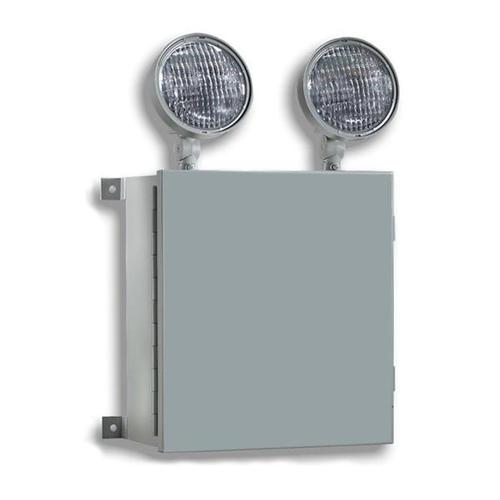

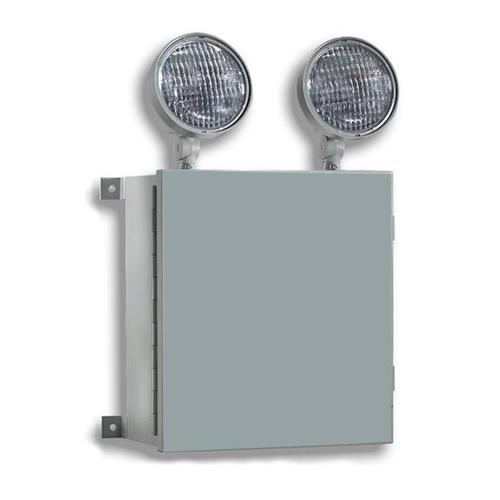

Product Name: JC-6-100-2 JC-6-100-2


For Spec info, please open:PDF FILE
  • NEMA12X rating
  • 20 gauge steel cabinet
  • Fully gasketed and hinged front access panel to allow trouble-free installation and maintenance
  • Industrial grey powder coat finish is standard
  • PAR36 top mounted heads
  • Magnum terminal connectors allow for larger gauge wires
  • Integral mounting feet for positive and secure installations
  • Suitable for wall, deiling, and pendant mounting
  • Pulse switching charger
  • Low voltage disconnect
  • Brownout and short circuit protection
  • Dual diagnostic LED display indicates AC/ON and High Charge
  • External push-to-test button
  • Designed with maintenance-free, sealed valve regulated lead acid battery
  • Certified by ETL or CSA to UL924 standards
The NEMA 12 series of industrial emergency lighting units are designed for durability and dependability. The NEMA 12 gasketed steel housing can be used in areas that generate dust, lint, fibers, dripping water and condensation. The NEMA 12 is designed with the PulseGuard pulse swithcing charger. The PulseGuard offers superior performance and energy efficiency versus conventional constant voltage chargers. Traditional top mounted PAR36 style heads are standard.


JC-6-100-2-NC100 JC-6-100-2-NC100
  • Model: 6 Volt 100 Watt
  • Number Of Heads: 2 PAR36 Heads
  • Self-Diagnostics: No
  • Ni-Cad Battery: 100 Watt Ni-Cad
  • Voltmeter: No
  • Ammeter: No
  • Time Delay: No
  • Internal Heater: No
  • Metal Heads: No
  • Food Prep Lenses: No
  • Cord Set: No
